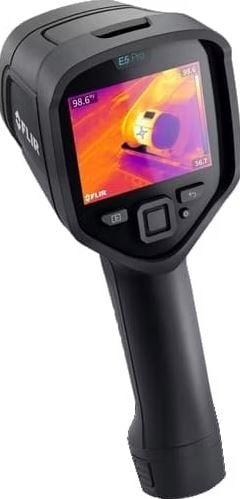

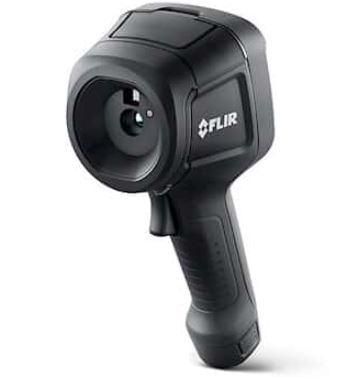

FLIR E5 Pro Thermal Imaging Infrared Camera With Ignite Cloud
All Ex-Series thermal cameras feature FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
PRODUCT OVERVIEW
All Ex-Series thermal cameras feature FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Save Time With 1-Touch Level/Span
1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.
NFPA 70B Compliant - Delta T Measurement Tools
With NFPA 70B compliant Delta T measurement tools now built into Ex-Series cameras (Box1 Max - Spot1 Max, and Box1 Max - Atmosphere Temperature), you can save a lot of time by calculating ∆T on the camera without any additional steps. Featuring a 3.5-inch touchscreen, the FLIR E8 Pro allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it. Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty.
| Product Name | FLIR E5 Pro Thermal Imaging Infrared Camera With Ignite Cloud |
|---|---|
| Weight | 5.800000 |
| Battery Type | Rechargeable Lithium ion battery |
| Battery | Lithium ion battery |
| Power | Battery Li-ion 3.6 V, 2.6 Ah, 9.4 Wh (T199362ACC) |
| Display | 3.5 in. 640 × 480 color LCD |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Image Sensor | Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
| Operating Temperature | -15°C to 50°C (5°F to 122°F) |
| Spectral Range | 7.5 µm to 13 µm |
| Focusing Distance | 0.36 m (1.18 ft) |
| Max Resolution | 160 × 120 (19,200 pixels) |
| Manufacturer | Flir |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
