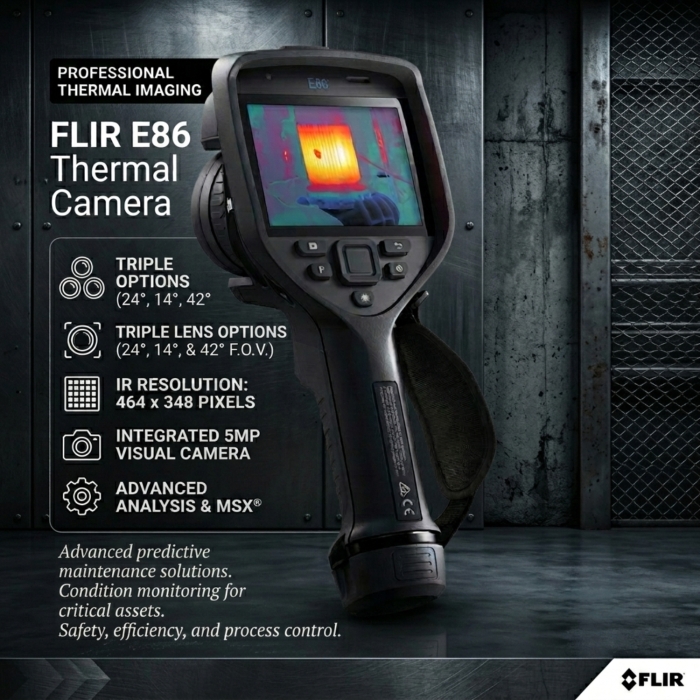

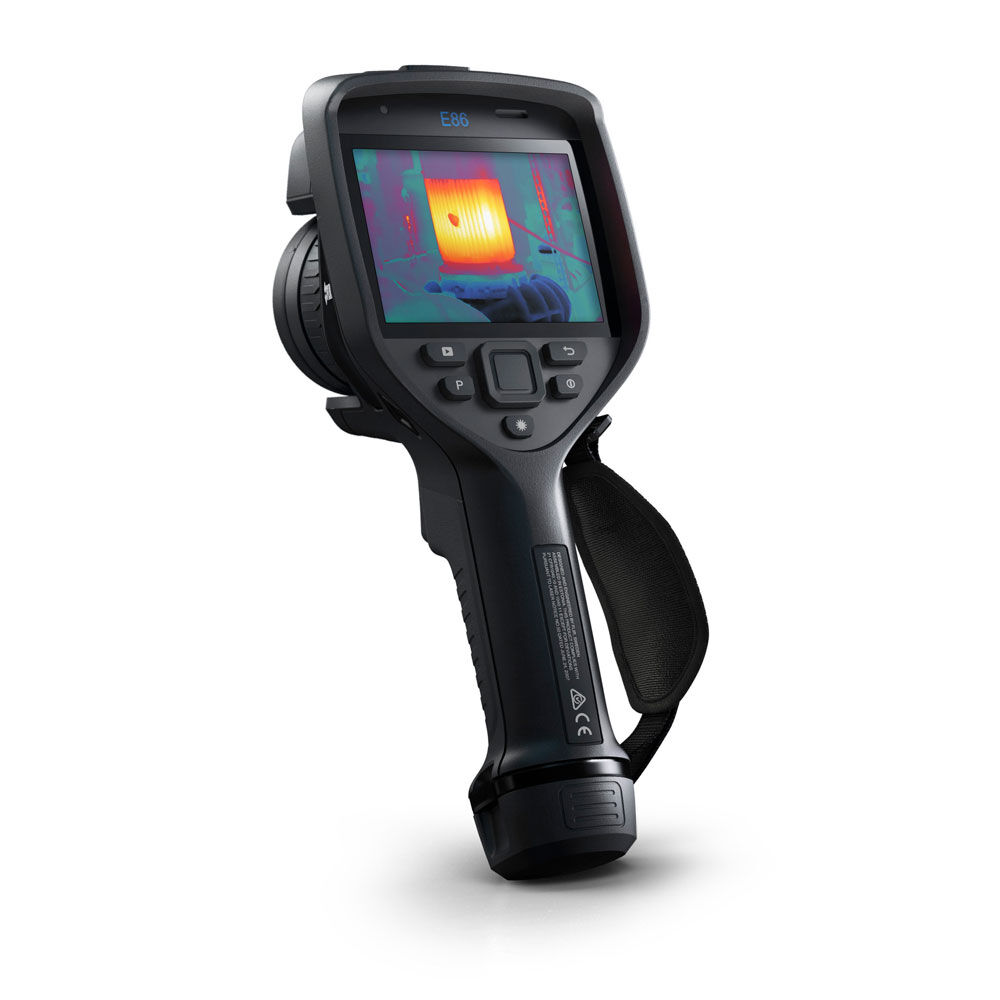

FLIR E86 Advanced Thermal Imaging Camera with IFOV 24° + 14° & 42° Lens
The FLIR Systems FLIR E86 (78521-1301) is a high-performance thermal imaging camera designed for demanding industrial, electrical, and building diagnostics. Built for professionals who require precision and adaptability, it delivers advanced imaging capabilities with enhanced flexibility for both close-range analysis and wide-area surveys.
PRODUCT OVERVIEW
FLIR E86 (78521-1301) Advanced Thermal Imaging Camera
The FLIR Systems FLIR E86 (78521-1301) is a high-performance thermal imaging camera designed for demanding industrial, electrical, and building diagnostics. Built for professionals who require precision and adaptability, it delivers advanced imaging capabilities with enhanced flexibility for both close-range analysis and wide-area surveys.
Interchangeable Optics with AutoCal™ Lenses
Equipped with interchangeable AutoCal™ lenses, the E86 allows seamless switching between multiple field-of-view options. This ensures accurate inspections across varying distances without compromising image quality or slowing down workflow efficiency.
High-Resolution Thermal Imaging Performance
The device features a high-resolution thermal detector that produces sharp, detailed imagery. Combined with advanced image processing, it enhances clarity and improves diagnostic confidence when identifying electrical faults, mechanical issues, and building envelope defects.
Precision Autofocus and Image Optimization
Laser-assisted autofocus ensures consistently sharp imaging, even in complex field conditions. On-device level and span adjustment enables rapid contrast optimization, helping users quickly isolate temperature anomalies.
Smart Workflow and Connectivity
Designed for modern inspection workflows, the E86 integrates with cloud-based data management for automatic file storage, secure access, and streamlined reporting. Built-in tools and voice annotation further improve documentation efficiency directly from the field.
| Product Name | FLIR E86 Advanced Thermal Imaging Camera with IFOV 24° + 14° & 42° Lens |
|---|---|
| Weight | 1.000000 |
| Battery Type | Rechargeable Li-ion battery |
| Battery | Rechargeable Li-ion battery |
| Power | >2.5 hours at 25°C (68°F) and typical use |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Image Sensor | 5 MP, with built-in LED photo/video lamp |
| Operating Temperature | -15 to 50°C (5 to 122°F) |
| Spectral Range | 7.5-14 µm |
| Focusing Distance | • 0.15 m (0.49 ft.), 42° • 0.15 m (0.49 ft.), 24° • 1.0 m (3.28 ft.), 14° |
| Max Resolution | 320 × 240 pixels |
| Max. Power Consumption | 3.6 VDC |
| Dimensions | 27.84 x 11.61 x 11.31 cm |
| Manufacturer | Flir |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
