Fluke 114 True RMS Digital Multimeter CAT III 600V Electrical Testing Meter
Quick Overview
- Resistance and continuity
- Min/Max/Average to record signal fluctuations
- Features a compact ergonomic design for one-handed operation
- Features manual and automatic ranging
- Comes with an holster with probe holders for easy storage
PRODUCT OVERVIEW

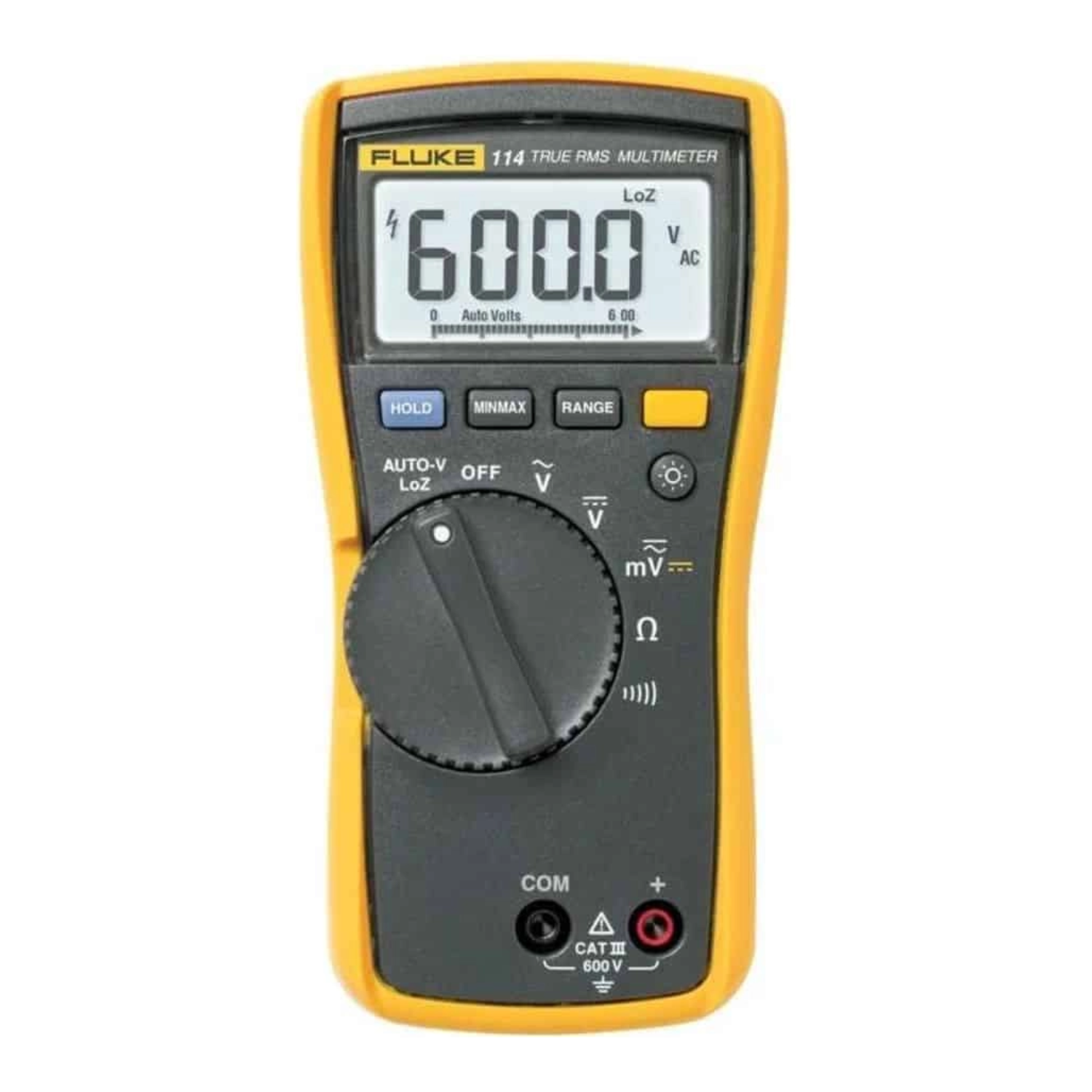

Fluke 114 Electrical Multimeter
Designed for easy one-hand operation, the Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for “go/no-go" testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called “ghost voltage" and prevent false readings.
The Fluke 114 displays true-RMS voltage and current readings with 6000 count resolution and tests frequency, continuity, and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy.
A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.
Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments.
- AutoVolt automatic ac/dc voltage selection
- Low input impedance helps prevent false readings due to ghost voltage
- Work in poorly lit areas with the Large white LED backlit display
- Resistance and continuity
- Record signal fluctuations using Min/Max/Average
- Integral holster with probe holders for easy storage
- Auto and Manual ranging
- CAT III 600 V safety rated
- An optional TPAK magnetic hanger allows the user hands-free flexibility
| Product Name | Fluke 114 True RMS Digital Multimeter CAT III 600V Electrical Testing Meter |
|---|---|
| Voltage | 600 V |
| Current | < 350 µA |
| Capacitance | 1000 nF / 10.00 μF / 100.0 μF / 9999 μF, 1 nF / 0.01 μF / 0.1 μF / 1 μF, 1.9% + 2 |
| Frequency | - |
| Battery | 9 volt Alkaline, NEDA 1604A / IEC 6LR61, 400 hours typical, without backlight |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Certificates | Complies with ANSI / ISA 82.02.01 (61010–1) 2004, CAN / CSA-C22.2 No 61010-1-04, UL 61010–1 (2004) and IEC / EN 61010–1 2nd Edition for measurement Category IV, 600 V, Pollution Degree 2, EMC EN61326–1 |
| Weight | 0.183251 |
| Dimensions (WxHxD) mm | 167.1 x 85.1 x 46.0 mm |
| Manufacturer | Fluke |
| Country of Origin | United States |
Product Datasheet
