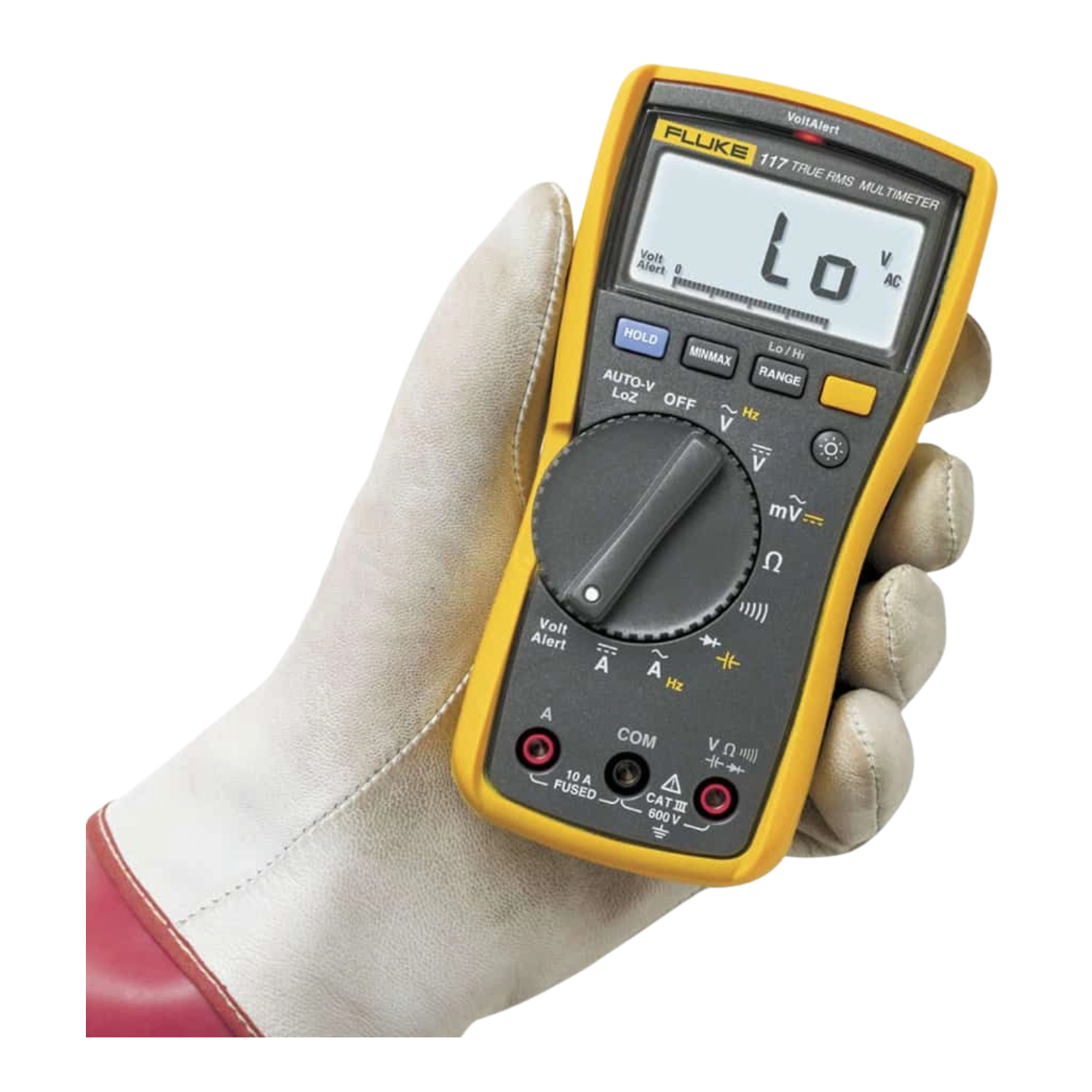

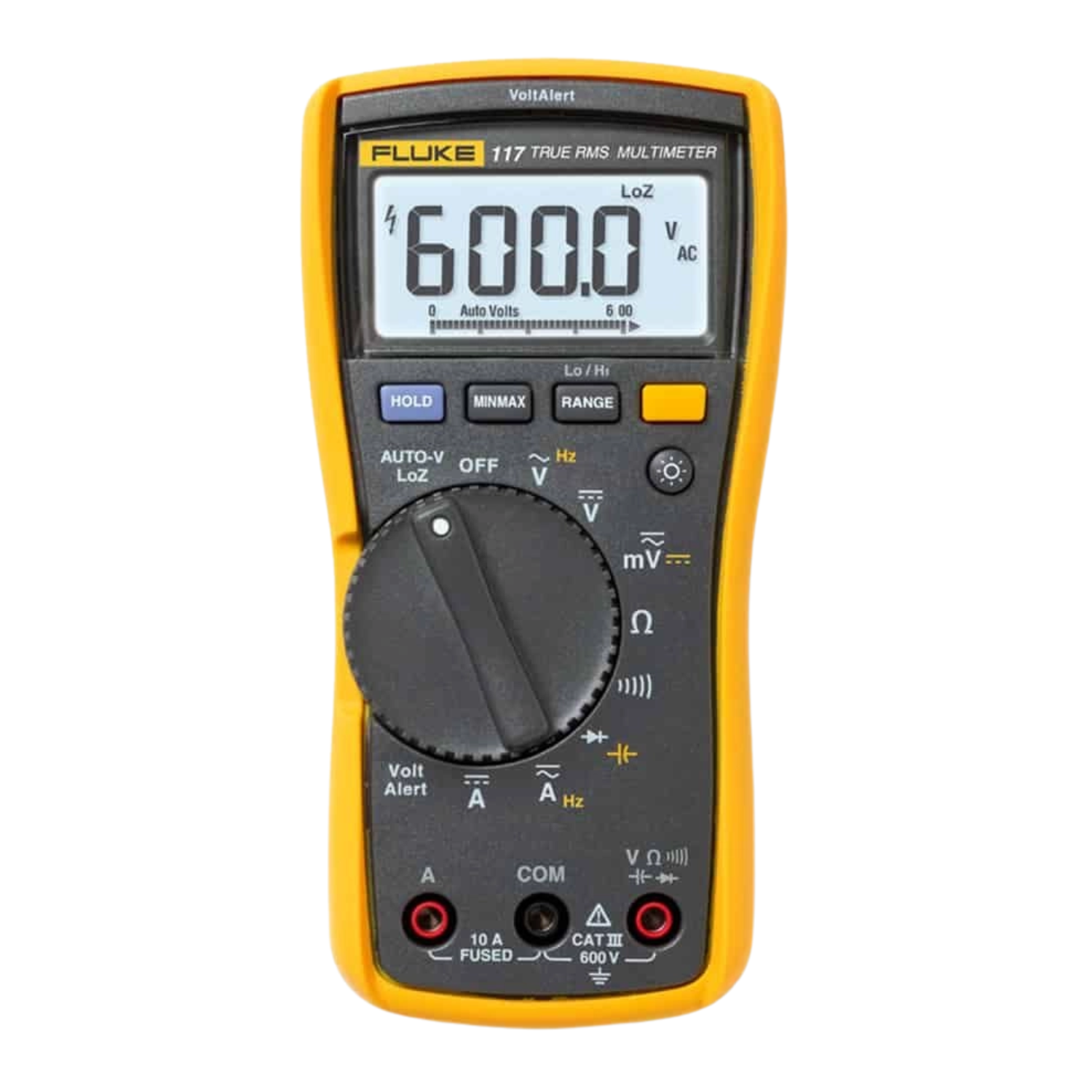

Fluke 117 True RMS Digital Multimeter CAT III 600V, 10A With Non-Contact Voltage Detector
Quick Overview
- Large white LED backlight to work in poorly lit areas
- Measures resistance, continuity, frequency, and capacitance
- Provides Min/Max/Average to record signal fluctuations
- Features a compact ergonomic design for one-handed operation
PRODUCT OVERVIEW
Fluke 117 Electricians Multimeter with Non-Contact voltage
The Fluke 117 Digital Multimeter includes integrated non-contact voltage detection and AutoVolts and LoZ functions that help prevent false readings caused by ghost voltage. It is a compact True-RMS meter for demanding applications like commercial buildings, hospitals, and schools and helps get the job done faster.
Users around the world have said their 117 digital multimeter is an investment in accuracy. The Fluke 117 provides min/max/average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.
The Fluke 110 Series has five true-rms digital multimeters, each for specific users. The compact instruments offer convenient one-handed operation and a backlit display with large, easy-to-read digits.
|
|
|
Other Useful Features:
- Accurate, easy-to-use multimeter with integrated VoltAlert™ technology for non-contact voltage detection
- Features AutoVolt automatic AC/DC voltage selection
- Provides low input impedance to help prevent false readings due to ghost voltage
- Presents a large white LED backlight for working in poorly lit areas
- Features True RMS capabilities for accurate measurements on non-linear loads
- Measures 10 A (20 A overload for 30 seconds)
- Measures resistance, continuity, frequency, and capacitance
- Provides Min/Max/Average to record signal fluctuations

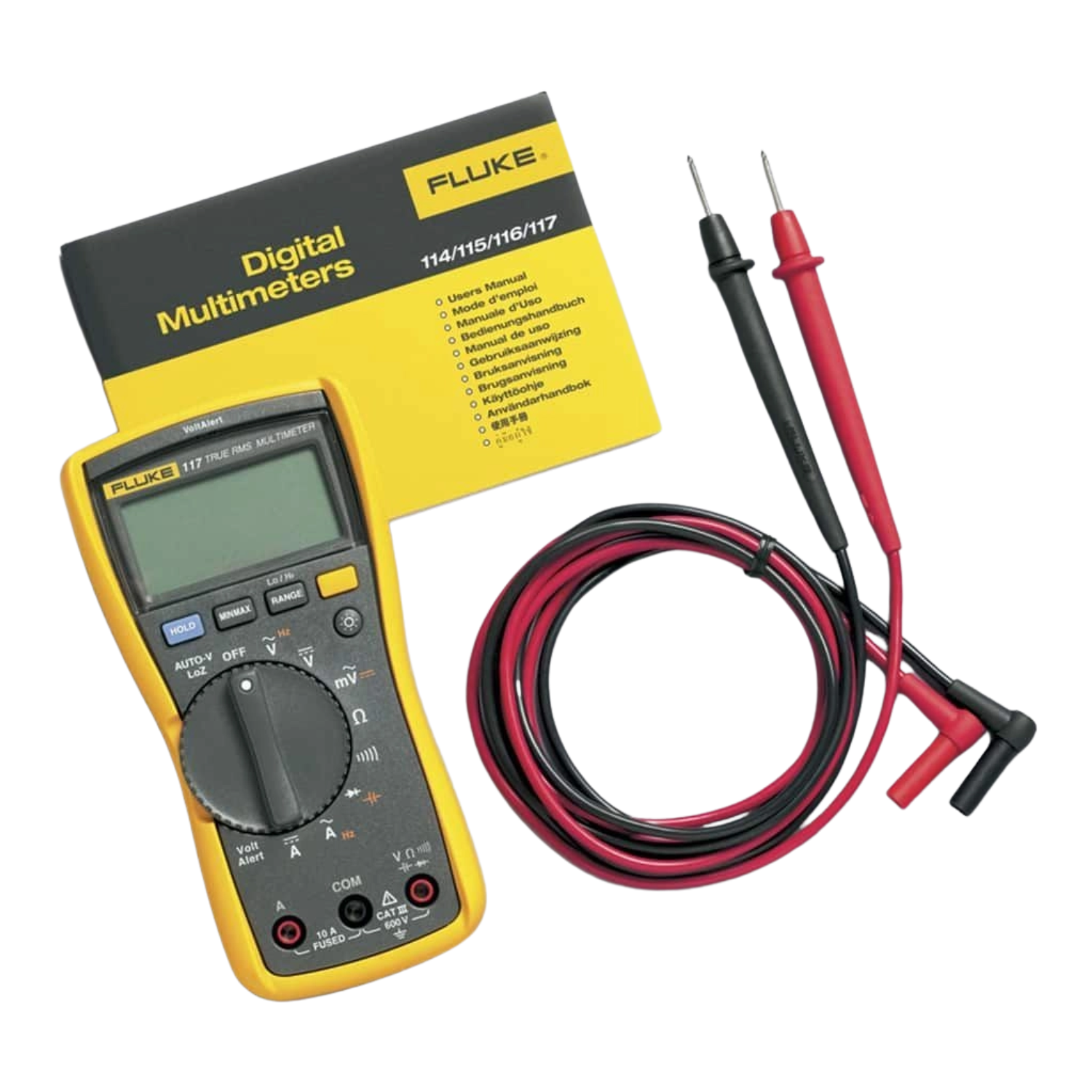

- Comes with an holster with probe holders for easy storage
- Features compact ergonomic design for one-handed operation
- Fits into optional ToolPak™ magnetic hanger for hands-free operation
- CAT III 600 V safety rated
- A large white LED backlight to improve measurement visibility in poorly lit areas
- VoltAlert™ technology for fast, go/no-go non-contact voltage detection
- AutoVolt and low input impedance modes to provide faster, more accurate readings
- For commercial electricians, commercial and residential electrical work
| Product Name | Fluke 117 True RMS Digital Multimeter CAT III 600V, 10A With Non-Contact Voltage Detector |
|---|---|
| Voltage | 600 V |
| Current | < 350 µA |
| Capacitance | 1000 nF / 10.00 μF / 100.0 μF / 9999 μF, 1 nF / 0.01 μF / 0.1 μF / 1 μF, 1.9% + 2 |
| Frequency | - |
| Battery | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61, Battery life 400 hours typical, without backlight |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Certificates | Complies with ANSI / ISA 82.02.01 (61010–1) 2004, CAN / CSA-C22.2 No 61010-1-04, UL 61010–1 (2004) and IEC / EN 61010–1 2nd Edition for measurement Category IV, 600 V, Pollution Degree 2, EMC EN61326–1 |
| Weight | 0.183251 |
| Dimensions (WxHxD) mm | 167.1 x 85.1 x 46.0 mm |
| Manufacturer | Fluke |
| Country of Origin | United States |
Product Datasheet
