Fluke 1555 Insulation Resistance Tester CAT IV 600V, 250V - 10kV

PRODUCT OVERVIEW

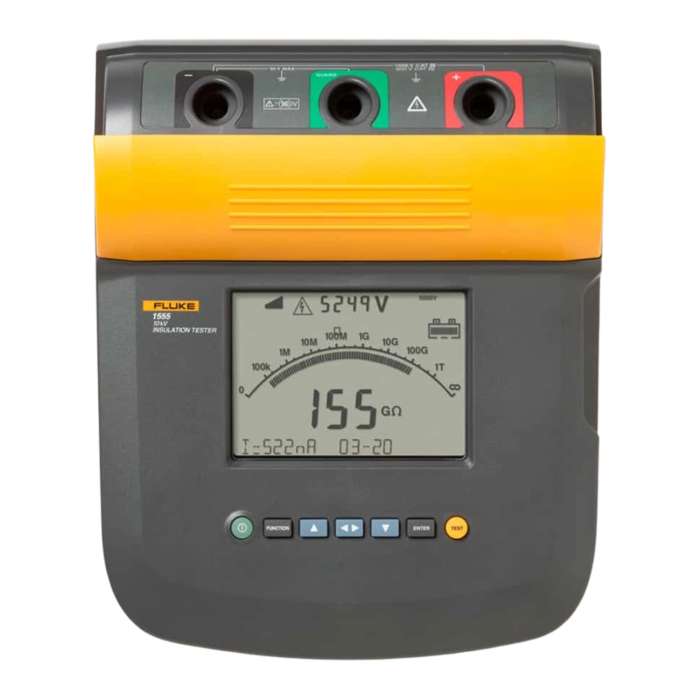

Fluke 1555 Insulation Resistance Tester

The Fluke 1555 insulation resistance tester offers digital insulation testing up to 10 kV, making it ideal for testing a wide range of high-voltage equipment, including switchgear, motors, generators, and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best-in-class 3-year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 is the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.

Features

• Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
• CAT III 1000 V, CAT IV 600 V safety rating
• The warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
• Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user-defined label for easy recall
• Long battery life gives the user over 750 tests between charges
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
• The guard system eliminates the effect of surface leakage current on high-resistance measurements
• Large digital/analog LCD for easy viewing
• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• Resistance measurements up to 2 TΩ
• Timer settings up to 99 minutes for timed tests
• 3-year warranty
