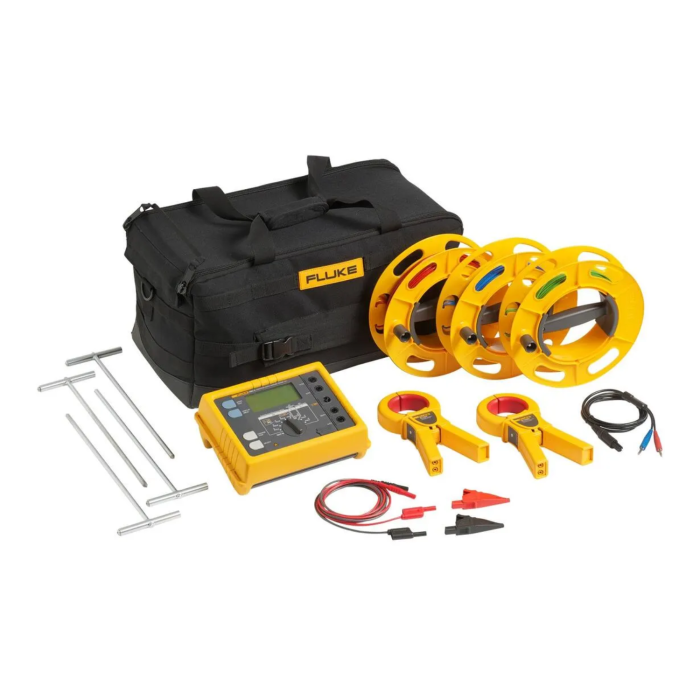

Fluke 1625-2-KIT Advanced Geo Earth Ground Tester Kit
Quick Overview
- 3- and 4-Pole Fall-of-Potential (using stakes)
- 4-Pole Soil Resistivity testing (using stakes)
- Selective testing (using 1 clamp and stakes)
- Stakeless testing (using 2 clamps only) Adjustable limits - for quicker testing
- IP56 rated for outdoor use
PRODUCT OVERVIEW
Fluke 1625-2 GEO Earth Ground Tester Kit
The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaws stay in alignment and in calibration even in everyday, on-the-job industrial environments. Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay online and identify ground loop resistance without the need to disconnect and then reconnect the earth electrode from the system.
Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay online and identify ground loop resistance without the need to disconnect and then reconnect the earth electrode from the system.
|
|
|
Additional tool features:
- Heavy-duty stakes can be hammered into dry, hard soil.
- And new color-coded wires make setup simple and help eliminate mistakes and speed up setup and tear-down time as much as 50%
- IP56 rated for outdoor use
- Rugged carrying case
| Product Name | Fluke 1625-2-KIT Advanced Geo Earth Ground Tester Kit |
|---|---|
| Weight | 7.600000 |
| Operating Temperature | 0°C and 35°C |
| Certificates | CE, N10140, TUV, CSA |
| Dimensions (WxHxD) mm | 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in) |
| Manufacturer | Fluke |
| Country of Origin | United States |
Product Datasheet
