Fluke 902 FC True RMS HVAC 600A, CAT IV 600V Clamp Meter
Quick Overview
- 200 µA DC current measurements to measure flame rod
- Extended resistance range to measure thermistors up to 60k
- Capture flue gas temperature
- Measures start and run motor capacitors
- Measures variable frequency drive performance
PRODUCT OVERVIEW

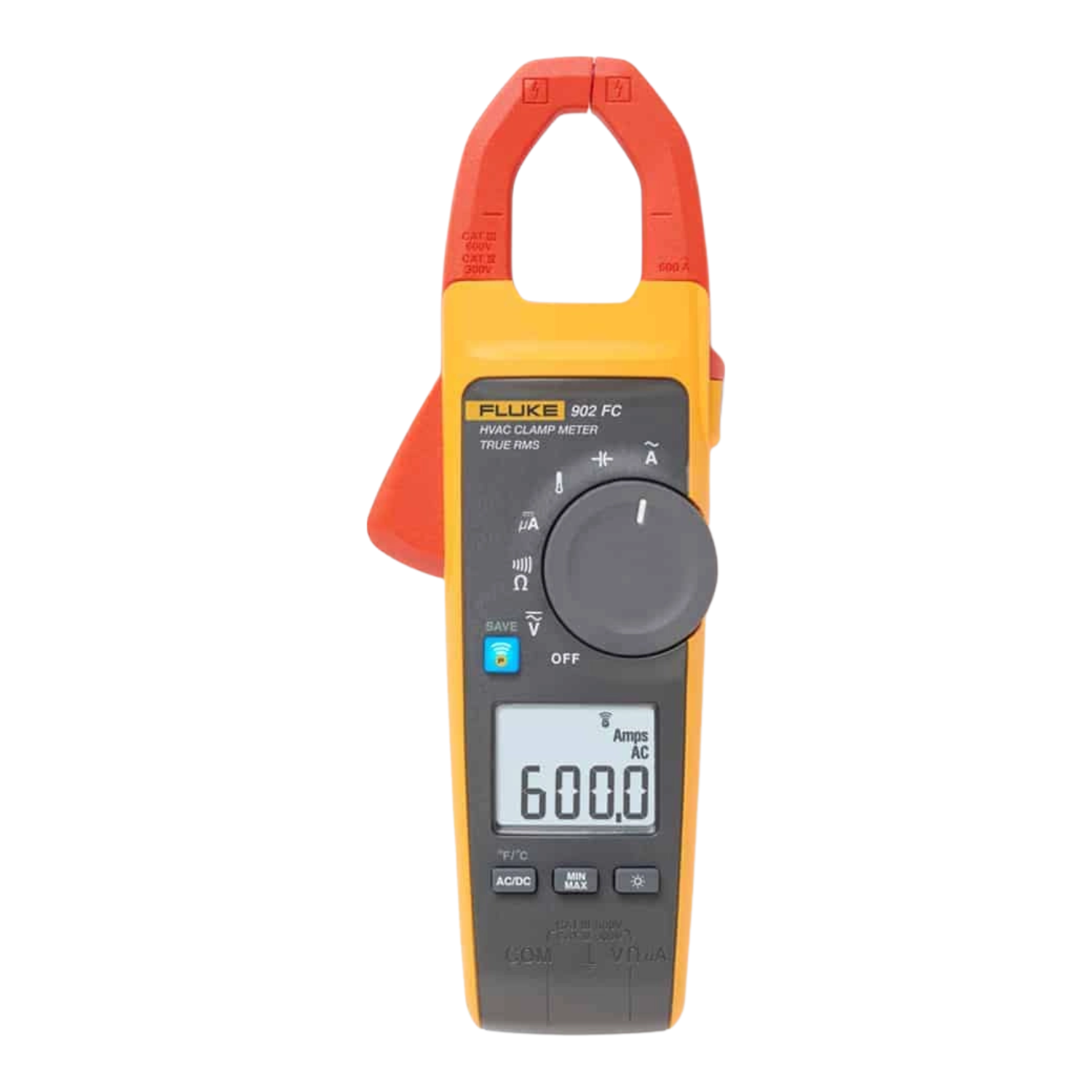

Fluke 902 FC True-RMS HVAC Clamp Meter
The Fluke 902 FC True-RMS HVAC Clamp Meter, a wireless Fluke Connect®-enabled meter, improves the productivity of HVAC technicians in the field. The rugged dual-rated CAT III, 600 V / CAT IV, 300 V meter performs the essential measurements of HVAC systems—microamps for testing pilot light sensors, resistance up to 60 kilohms, AC current, AC/DC voltage, capacitance, and contact temperature—eliminating the need to carry multiple tools. Its small body is easy to hold, and the jaw fits perfectly in tight work spaces.
Part Of The Fluke Connect Wireless Family
As part of Fluke Connect — the industry's largest system of software and more than 40 wireless test tools — the 902 FC can transmit measurements to a smartphone or tablet for later, detailed analysis. Those measurements can be uploaded to the cloud. Technicians can combine measurement data from multiple Fluke Connect test tools to create and share reports from the job site via email and collaborate in real time with other colleagues with ShareLive™ video calls or email, increasing productivity in the field.
The clamp meter also decreases the frequency that technicians will need to wear personal protective equipment when working on high-voltage/current panels. Simply turn off the panel, verify the panel is de-energized using standard safety procedures, place the clamp and sync it to a smartphone with the Fluke Connect app, close the panel, reenergize it, and take measurements from a safe distance.
|
|
|
Other Useful Features:

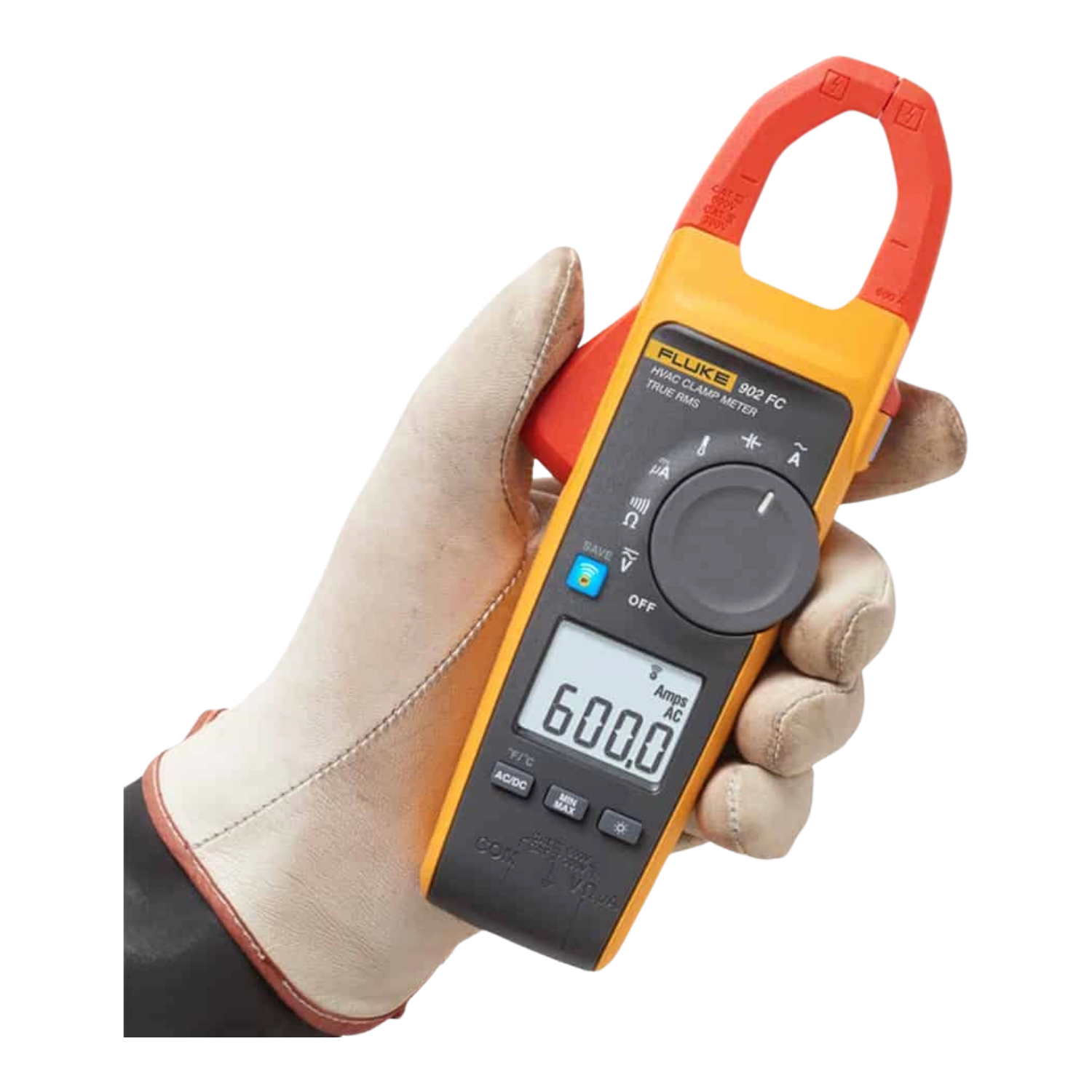

- Ergonomic design fits in your hand and can be used while wearing personal protective equipment
- Large, easy-to-read backlit display improves readings in low light settings

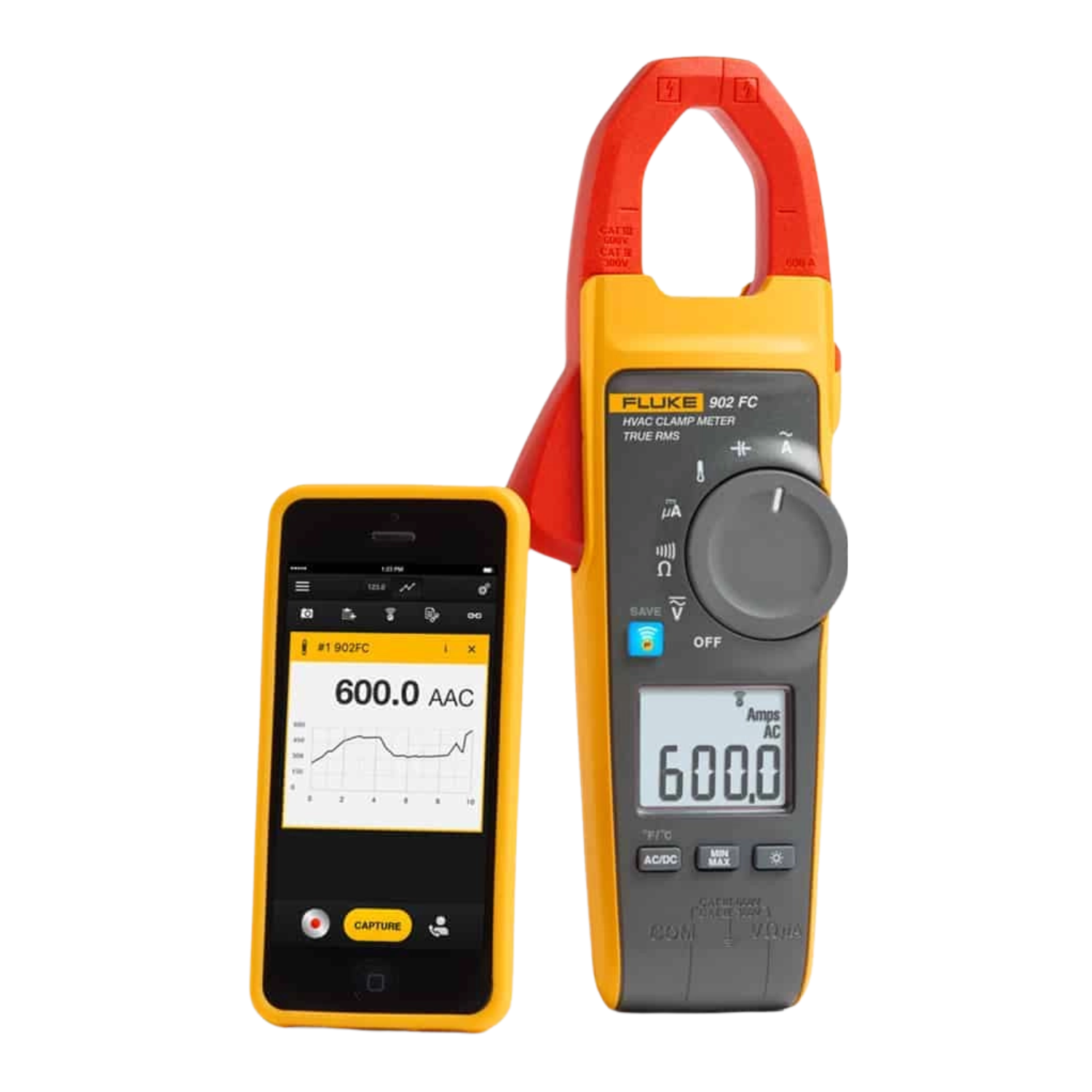

- Connects to your smartphone via Fluke Connect so you can read measurements at a safer distance
- Measures AC current to 600 A and AC and DC voltage to 600 V
- Measures capacitance to 1000 µF and DC current to 200 µA
- Measures temperature from -10 °C to 400 °C (14 °F to 752 °F)
- Offers True-RMS voltage and current measurements to accurately measure non-linear signals
- Measures resistance to 60 kΩ
- Offers Min/Max recording to capture variations automatically
- Runs on two AA alkaline batteries
| Product Name | Fluke 902 FC True RMS HVAC 600A, CAT IV 600V Clamp Meter |
|---|---|
| Weight | 0.453592 |
| Manufacturer | Fluke |
| Color | Orange |
| Country of Origin | United States |
Product Datasheet
