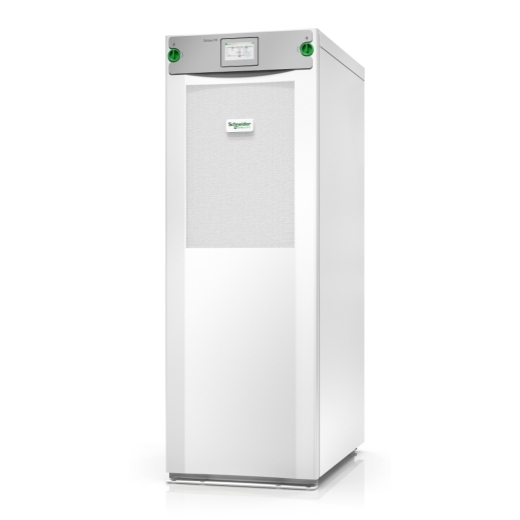

Galaxy VS UPS 100kW 400V for External Batteries, Start-up 5x8
PRODUCT OVERVIEW
Highly efficient, easy-to-deploy 100kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels.
Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
-
Highly efficient, easy-to-deploy 100kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data ...
-
Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-up service, Top and bottom cable entry
| Product Name | Galaxy VS UPS 100kW 400V for External Batteries, Start-up 5x8 |
|---|---|
| Output Power | 100 kVA/ 100000 VA |
| Output Voltage | 380 Volts |
| Input Frequency | 40 - 70 Hz |
| Input Voltage Range | 340 - 460 (400 V)V |
| Control Panel | Touch screen LCD user interface |
| Battery Type | External battery system |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Approvals | CSA C22.2 No 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC part 15 class A, IEC 60721-4-2 level 2M2, UL 1778 5th edition |
| Weight | 250.00 Kg |
| Shipping Weight | 275.0KG |
| Color | White |
| Country of Origin | United Arab Emirates |
