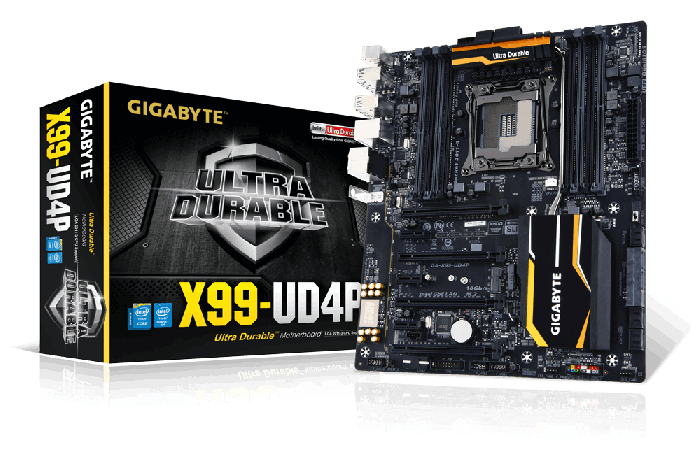

GIGABYTE GA-X99-UD4P Motherboard
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
GIGABYTE X99-UD4P Motherboard.
- Supports New Intel Core i7 Processor Extreme Edition
- Support for DDR4 XMP up to 3333MHz
- Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs
- 4-Way Graphics with Premium PCIe Lane
- Dual M.2 Technology for SSD Drive and WIFI card
- Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier
- Independent Right and Left Audio Channel PCB Layers
- High end Nichicon audio capacitors
- LED lighting for the audio guard light path and the back panel LED
- All Stainless Steel connectors on rear panel
- SATA Express support for up to 10 Gb/s data transfer
- GIGABYTE UEFI DualBIOS with Q-Flash Plus USB port
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune and Cloud Station utilities
- Thunderbolt Ready
- Safer design around screw mounting holes
| Product Name | GIGABYTE GA-X99-UD4P Motherboard |
|---|---|
| Socket | 2011-3 |
| Chipset | Intel X99 Express Chipset |
| Memory Channel | Dual |
| DIMM Slots | 8 |
| Max. Supported Memory | 128GB |
| Expansion Slots | 2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommend |
| USB | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset + Renesas uPD720210 USB 3.0 Hub: 4 x USB 3.0/2.0 ports on the back panel |
| VGA | No |
| HDMI | No |
| DVI | No |
| Form Factor | E-ATX |
| Manufacturer | GigaByte |
| Color | Black |
