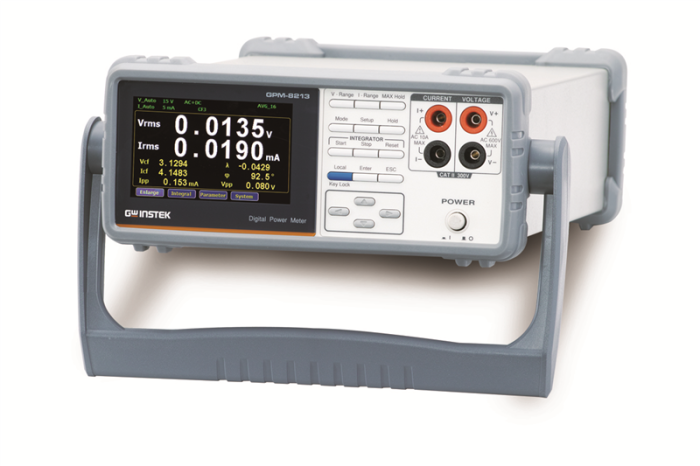

GW Instek GPM-8213 Single Phase Digital Power Meter

Actual Stock Can Be Confirmed After Placing the Order.
SKU
GPM-8213
AED6,367 AED6,064
Price Match Request
WhatsApp Facebook
GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power supply’s power measurements. Powerful features, including 4” TFT LCD, five-digit measurement display, 19 power measurement parameters.

PRODUCT OVERVIEW

GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power supply’s power measurements. Powerful features, including 4” TFT LCD, five-digit measurement display, 19 power measurement parameters, integral measurement function, high-accuracy voltage/current/power measurement capabilities, front/rear panel input terminals, and various communications ports, are to facilitate users with clear, convenient, and accurate power measurements.

Features

  • 4” TFT LCD
  • Two data display modes
  • Standard : two major measurement items + six secondary measurement items
  • Simple : displaying test data of four different measurement items
  • Met the requirement of IEC 62301 power measurement
  • Voltage/ current test frequency bandwidth : DC~6kHz
  • Watt resolution : 1mW
  • Lowest current range : 5mA, resolution : 0.1uA
  • Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
  • W-h (power vs time)/A-h (current vs time) integration function
  • Total harmonic distortion measurement
  • Front panel test terminal
  • Standard interface : RS-232C, USB device, LAN
  • Optional interface : GPIB
  • Optional test fixture : GPM-001
More Information
Product Name GW Instek GPM-8213 Single Phase Digital Power Meter
Weight 2.89 Kg
Power Input voltage 700V
Power Supply (PoE) 100...240V AC, 50...60Hz
Frequency Range 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz
Display TFT 4"
Dimensions 270x110x350mm
Manufacturer GW INSTEK
Color N/A
Country of Origin United States
