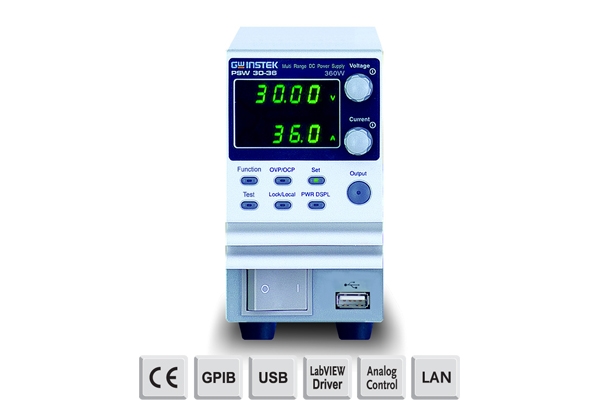

GW Instek PSW 30-36 Programmable Switching DC Power Supply

Actual Stock Can Be Confirmed After Placing the Order.
SKU
PSW 30-36
Price Match Request

Please call at +971-4-3360300 or Email Us for Special Pricing!

Pay 4 interest-free payments of AED 421.00.Learn more
The PSW 30-36 is a single output multi-range programmable switching DC Power Supply with a power output of 360 watts. The multi-range feature allows the flexible and efficient configuration of voltage and current within its power range.

PRODUCT OVERVIEW

Programmable Switching DC Power Supply

The PSW 30-36 is a single output multi-range programmable switching DC Power Supply with a power output of 360 watts. The multi-range feature allows the flexible and efficient configuration of voltage and current within its power range. As with all PSW-Series power supplies, the PSW 30-36 can be connected in series for maximum 2 units, or in parallel for maximum 3 units   increasing their capacity for higher voltage or higher current output. With the flexibility of multi-range power utilization and series/parallel connection, the PSW 30-36 can significantly reduce your investment in various power supplies as it can accommodate projects with different power requirements.

The PSW 30-36 is a regulated switching DC power supply producing 0 to 30 volts and 0 to 36 amperes. It operates in Constant Current (CC) mode or Constant Voltage (CV) mode within a wide operating range. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage.

Features

  • Voltage Rating: 30V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W
  • Constant Power Output for Multiple Range (V&I) Operation
  • CV/CC Priority; Particularly Suitable for the Battery and LED Industry
  • Adjustable Slew Rate
  • Series Operation: Up to 2 units (30V, 80V, 160V models only)
  • Parallel Operation: Up to 3 units
  • High Efficiency and High Power Density
  • 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W
  • Standard Interface: LAN,USB,Analog Control Interface
  • Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
  • LabView Driver
More Information
Product Name GW Instek PSW 30-36 Programmable Switching DC Power Supply
Weight 2.99 Kg
Power Input voltage 360W
Power Supply (PoE) 85...265V AC 50/60Hz
Dimensions 350x124x71mm
Manufacturer GW INSTEK
Color N/A
Country of Origin United States
