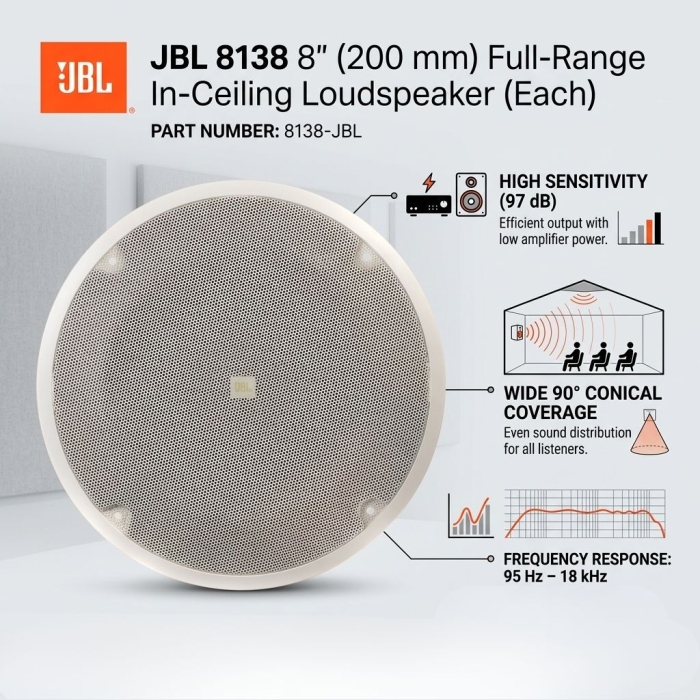

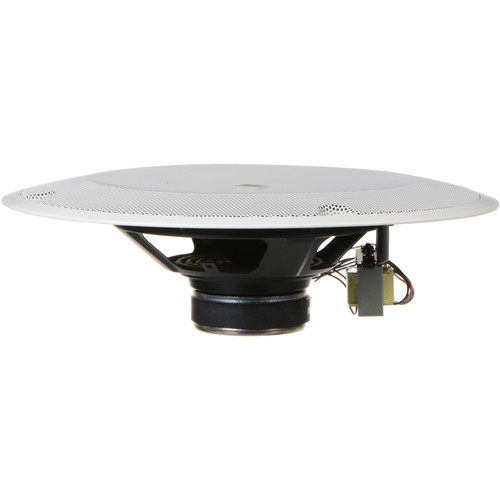

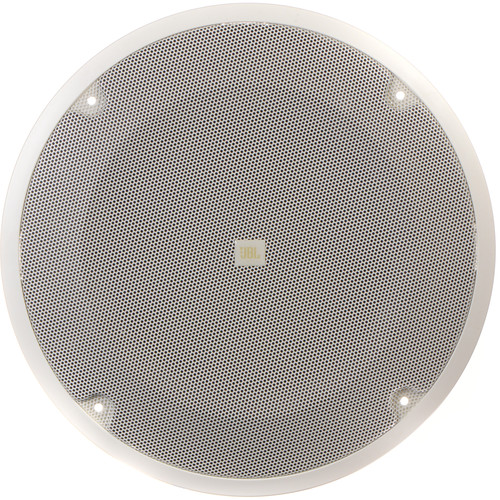

JBL 8138 8" (200 mm) Full-Range In-Ceiling Loudspeaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 8" (200 mm) full-range in-ceiling commercial loudspeaker
- Designed for use with pre-install backcan systems
- High sensitivity (97 dB) for efficient output with low amplifier power
- Wide 90° conical coverage for even sound distribution
- Frequency response: 95 Hz – 18 kHz
PRODUCT OVERVIEW
8" (200 mm) Full-Range In-Ceiling Loudspeaker for use with Pre-Install Backcans
The 8138 is an 8" ceiling speaker designed for use with a pre-installed in-ceiling back can, resulting in high-fidelity performance at a cost-effective price point. The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to professional offices and reception areas.
|
|
|
Features
- Stylish, contemporary appearance enhances any decor.
- Clear sound from an 8-inch dual-cone full-range driver.
- Very high sensitivity of 97 dB for maximum sound levels using minimum amplifier power.
- 6W transformer for use on 70V/100V distributed speaker lines
- Installs in in-ceiling backboxes having 4 mounting points on an 11.25" (286 mm) diameter mounting circle.
- For use with MTC-81BB8 backcan and MTC-81TB8 tile bridge
| Product Name | JBL 8138 8" (200 mm) Full-Range In-Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 1.400000 |
| Frequency Response | 95Hz - 18kHz (-10dB) |
| Frequency Range | 50 Hz – 16 kHz |
| Power Capacity | 40W (160W Peak), 2 Hours 25W (100W Peak), 100 Hours |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 97dB |
| Mounting | In-Ceiling Loudspeakers |
| Dimensions | 327 mm (12.9") diameter baffle x 84 mm (3.3") depth from back of baffle. Overall depth, 99 mm (3.9") |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
