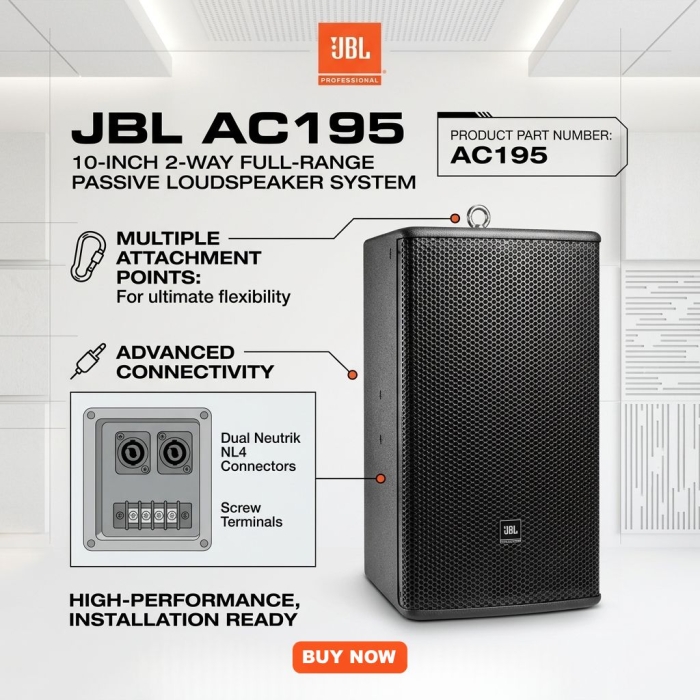

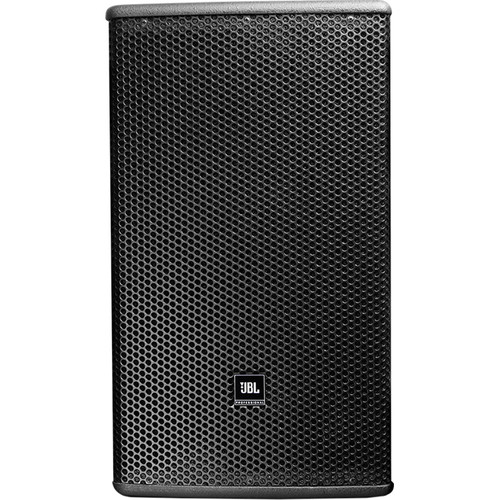

JBL AC195 10" 2-Way Full-Range Passive Loudspeaker System (Each)
Quick Overview
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
PRODUCT OVERVIEW
10-inch 2-Way Speaker with 90° x 50° Horn

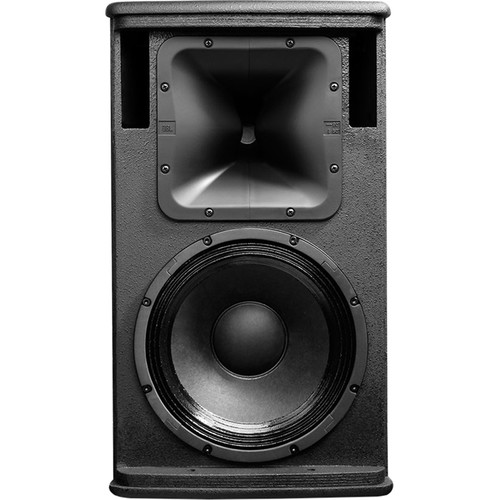

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications
|
|
|
Features
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi-Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Product Name | JBL AC195 10" 2-Way Full-Range Passive Loudspeaker System (Each) |
|---|---|
| Weight | 13.100000 |
| Frequency Response | 85 Hz to 18 kHz |
| Frequency Range | -10 dB: 68 Hz to 20 kHz |
| Power Capacity | 300W (1200W peak), 2 hrs |
| Maximum SPL | 3.2' (1 m): 118 dB (124 dB peak) |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 95 dB |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Mounting | 14 x M10 threaded suspension points 4 x M10 for wall mount bracket |
| Dimensions | 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
