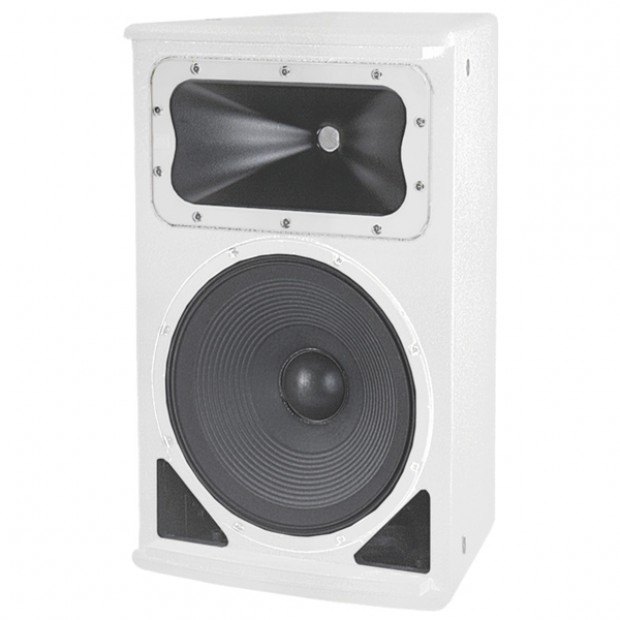

JBL AC2212/64-WH 12" 2-Way 250W Installation PA Loudspeaker
Ideal for fixed installation in houses of worship, theaters, gyms, and more, the JBL AC2212/64-WH passive 2-way installation PA loudspeaker offers versatile mounting options and consistent coverage.
PRODUCT OVERVIEW
Ideal for fixed installation in houses of worship, theaters, gyms, and more, the JBL AC2212/64-WH passive 2-way installation PA loudspeaker offers versatile mounting options and consistent coverage. With a 12" woofer and a horn-loaded compression driver in a ported birch plywood cabinet, the AC2212/64-WH delivers a 55 Hz to 17 kHz frequency response and a long-term power rating of 250W RMS (1000W peak). The Progressive Transition waveguide yields a coverage pattern of 100° by 100° while keeping distortion low.
The AC2212/64-WH features Neutrik speakON and barrier strip inputs, which can be switched for bi-amp or passive operation. A host of M10 and M8 points on the cabinet accommodate a variety of suspension- or bracket-based mounting configurations.
- Compact 2-way loudspeaker system for lecture halls, houses of worship, corporate learning centers, performing arts facilities, theaters, auditoriums, sports facilities, and more
- PT (Progressive Transition) waveguide for 100° x 100° coverage, good pattern control, and low distortion
- Long-term (100-hour) power rating of 250W continuous (1000W peak)
- 12" low-frequency driver and 1.5" exit compression driver
- High-slope passive crossovers minimize band overlap
- Bi-amp/passive switchable
- Rear-panel speakON and barrier strip input connectors; speakON wired in parallel with barrier strip for loop-thru connection
- 15 M10 suspension points for flying, and four M8 points for bracket mounts such as the Omnimount (available separately)
- Trapezoidal 11-ply birch plywood cabinet with a powder-coated, perforated, 14-gauge steel grille
Compact 2-Way Loudspeaker with 1 x 12" LF
AC2212/64-WH speakers are compact 2-way full-range loudspeaker systems comprised of one 300 mm (12 in) low-frequency driver and one voice-coil compression driver.
Features
- PT Progressive Transition™ Waveguide for good pattern control with low distortion.
- Bi-Amp / Passive Switchable.
- Optional U-Bracket Model MTU-4.
- For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed
entertainment venues.
| Product Name | JBL AC2212/64-WH 12" 2-Way 250W Installation PA Loudspeaker |
|---|---|
| Weight | 19.05 Kg |
| Frequency Response | 55 Hz – 17 kHz |
| Frequency Range | 50 Hz – 19 kHz |
| Power Capacity | Passive mode: 250 W (1000 W peak), 100 hrs |
| Maximum SPL | Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) HF: 126 dB-SPL cont avg (132 dB peak) Passive mode: 120 dB-SPL cont avg (126 dB peak) |
| Impedance | 8 Ohms |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Mounting | 4 x M10 Fly Point (Top) 4 x M10 Fly Point (Bottom) 2 x M10 Fly Point (Each Side) 3 x M10 Fly Point (Rear) 4 x M8 Bracket Point (Rear) |
| Dimensions | 548 x 355 x 352 mm |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
