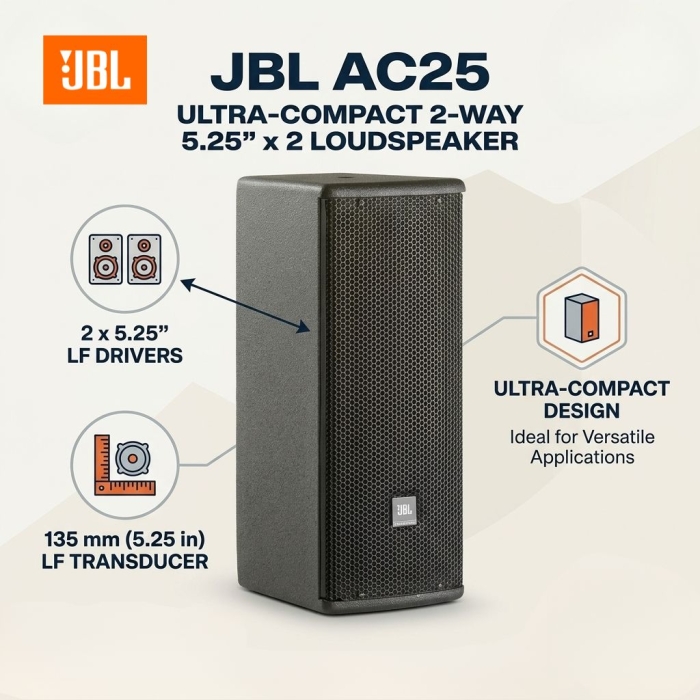

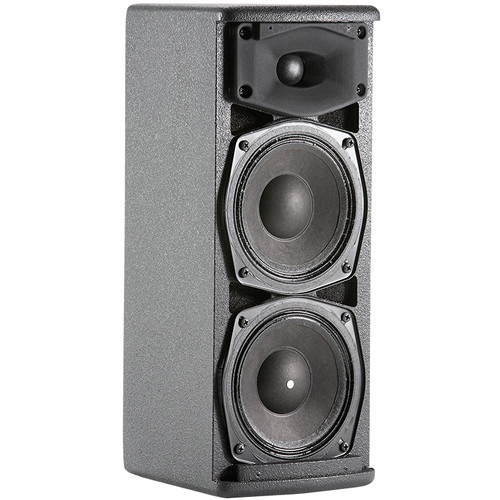

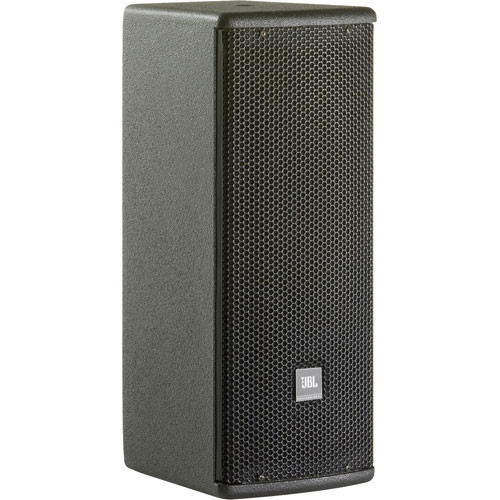

JBL AC25 Ultra-Compact 2-Way 5.25" x 2 Loudspeaker (Each)
Quick Overview
- 90° x 90° waveguide with 25 mm (1 in) dome tweeter
- 135 mm (5.25 in) LF transducer
- Ultra Compact 2-way Loudspeaker with 2 x 5.25” LF
- 450W Program
- Dual Neutrik NL4 connectors plus screw terminal
PRODUCT OVERVIEW
Ultra Compact Dual 5-inch 2-way Loudspeaker
An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
|
|
|
Features
- 90° x 90° waveguide with 25 mm (1 in) dome tweeter
- 135 mm (5.25 in) LF transducer
- Ultra-Compact 2-way Loudspeaker with 2 x 5.25” LF
- 450W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket
Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
| Product Name | JBL AC25 Ultra-Compact 2-Way 5.25" x 2 Loudspeaker (Each) |
|---|---|
| Weight | 7.500000 |
| Frequency Response | 90 Hz - 18 kHz |
| Frequency Range | 80 Hz - 20 kHz |
| Power Capacity | 225 W RMS 450 W Program 900 W Peak |
| Maximum SPL | 115 dB |
| Impedance | 16 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 91 dB SPL |
| Enclosure | 12 mm exterior grade multi-ply hardwood plywood |
| Dimensions | 377.8 x 150.3 x 177.8 mm |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
