JBL AC266 12" 2-Way Full-Range Passive Loudspeaker System (Each)

SKU
AC266
$1,369 $1,304
Limited Stock - Running Out Quickly

WhatsApp

Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept

Quick Overview

  • Robust 15mm enclosure with black textured finish
  • 310 mm (12 in) LF transducer
  • 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

PRODUCT OVERVIEW

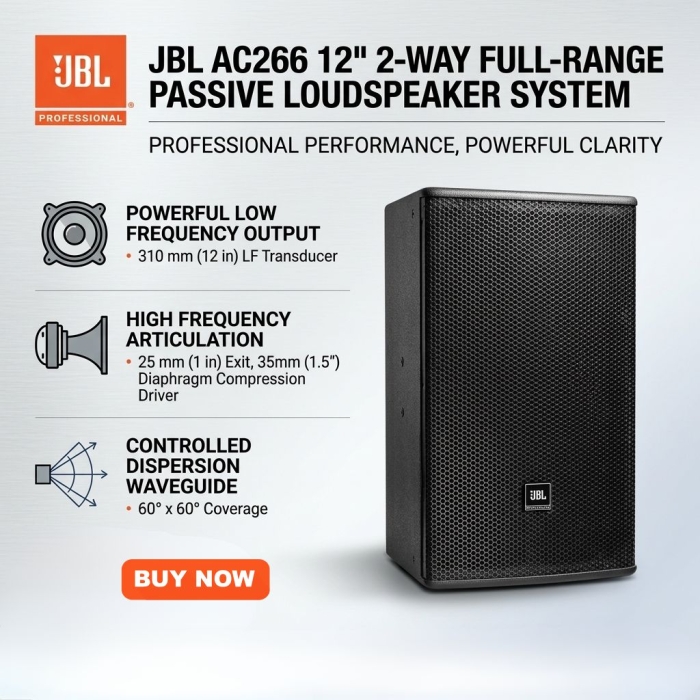

12-inch 2-Way Speaker with 60° x 60° Horn

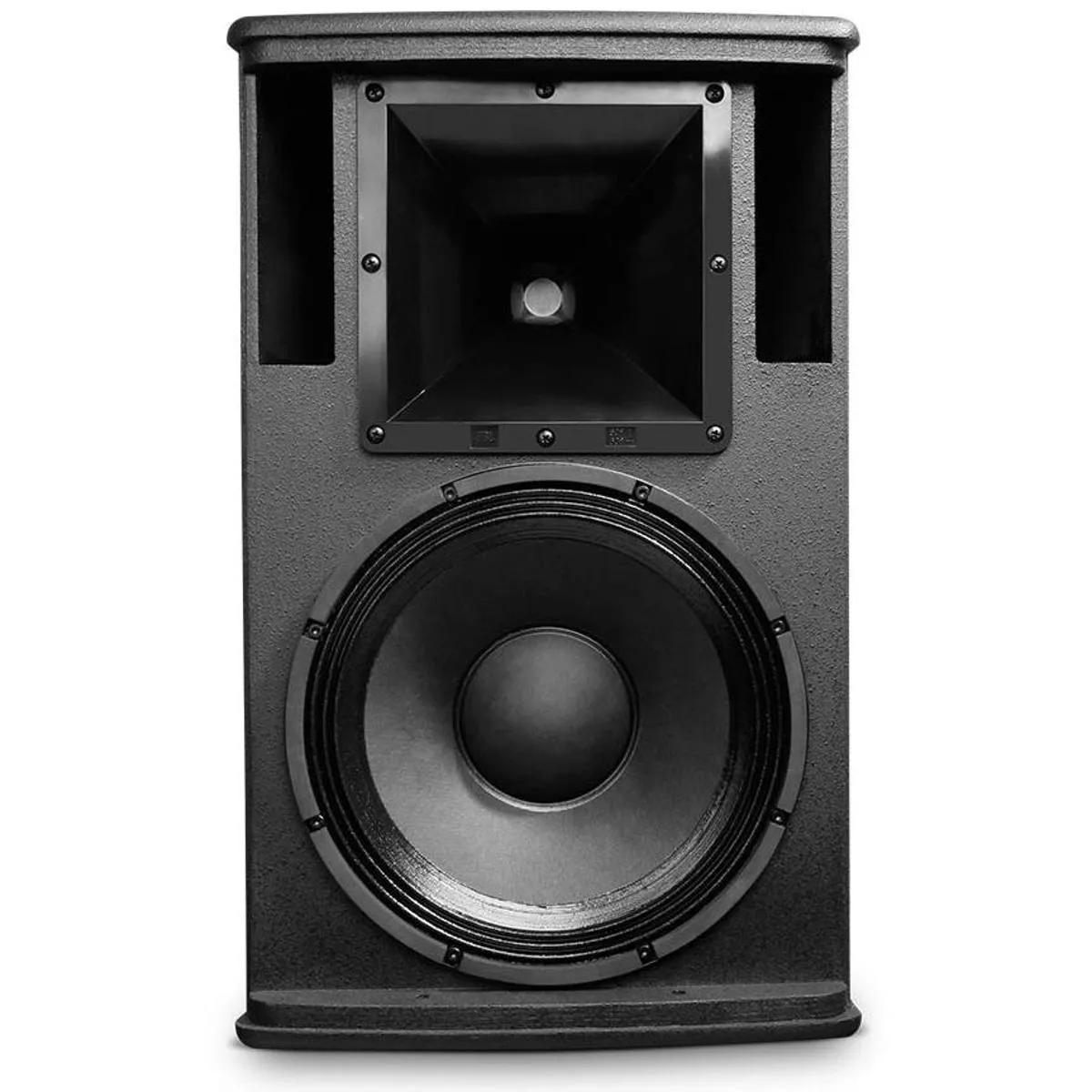

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

  • Robust 15mm enclosure with a black textured finish
  • 310 mm (12 in) LF transducer
  • 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi-Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
More Information
Product Name JBL AC266 12" 2-Way Full-Range Passive Loudspeaker System (Each)
Weight 17.400000
Frequency Response 80 Hz - 18kHz
Frequency Range 63 Hz - 20 kHz
Power Capacity 250 W/500 W/1000 W (Continuous/Program/Peak)
Maximum SPL 121 dB (127 dB peak)
Impedance 8 Ohms
Sensitivity (SPL / 1 W @ 1 m) 97 dB
Enclosure 15 mm multi-ply hardwood plywood
Mounting 14 x M10 threaded suspension points 4 x M10 for wall mount bracket
Dimensions 600 mm x 370 mm x 392 mm
Manufacturer JBL
Color Different Colors
Country of Origin United States
