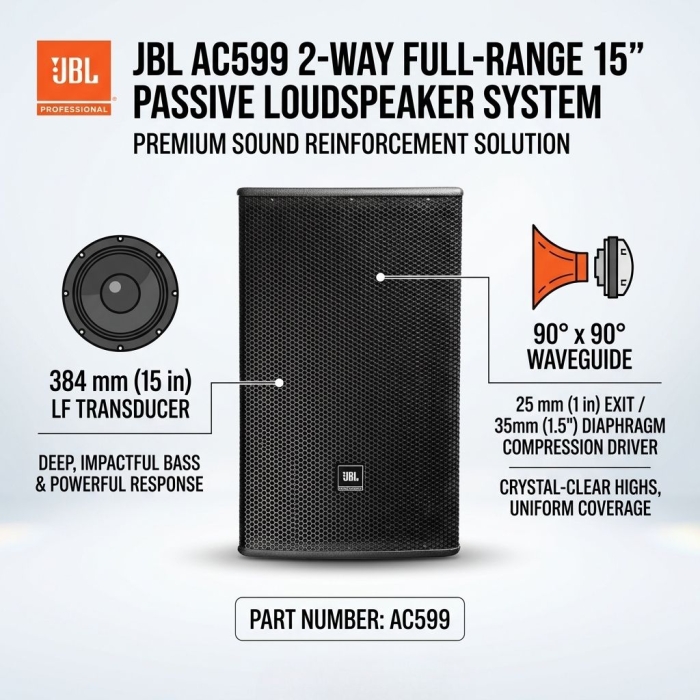

JBL AC599 2-Way Full-Range 15" Passive Loudspeaker System (Each)
Quick Overview
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
PRODUCT OVERVIEW
Two-Way Full-Range Loudspeaker System with 1 x 15" LF

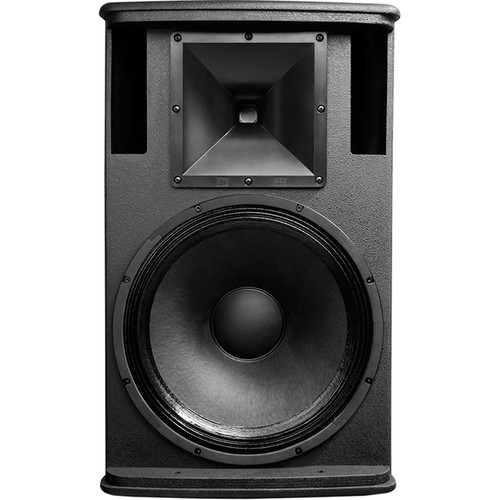

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low-frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in a vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on the back of the enclosure allow attachment of a MultiMount® or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
|
|
|
Features
- Robust 15mm enclosure with a black textured finish
- 310 mm (12 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi-Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Product Name | JBL AC599 2-Way Full-Range 15" Passive Loudspeaker System (Each) |
|---|---|
| Weight | 19.600000 |
| Frequency Response | 75 Hz - 18kHz |
| Frequency Range | 60 Hz - 20 kHz |
| Power Capacity | 350W (1400W peak), 2 hrs |
| Maximum SPL | 122 dB (128 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 98 dB |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket |
| Dimensions | 68.0 x 42.0 x 44.5 cm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
