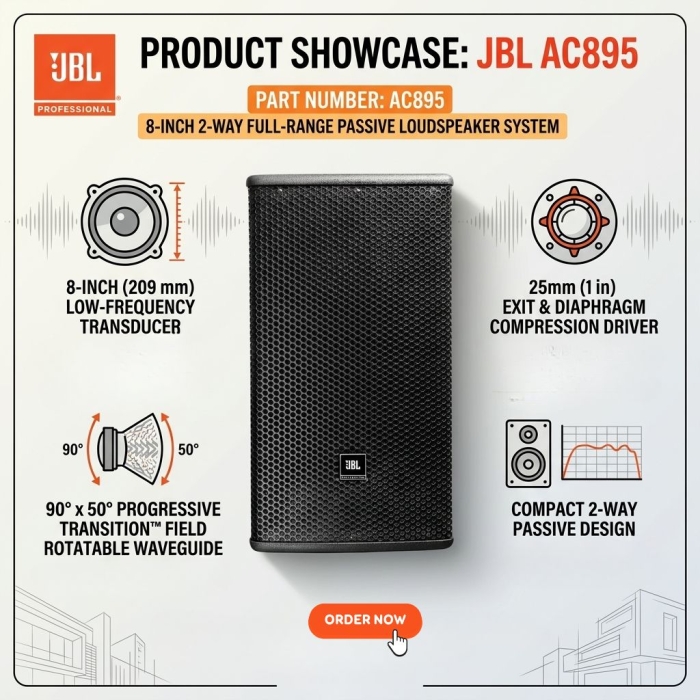

JBL AC895 8" 2-Way Full-Range Passive Loudspeaker System (Each)
Quick Overview
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
PRODUCT OVERVIEW
Two-Way Full-Range Loudspeaker with 1 x 8" LF
AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low-frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation.
High slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on the back of the enclosure allow attachment of a MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
|
|
|
Features
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi-Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Product Name | JBL AC895 8" 2-Way Full-Range Passive Loudspeaker System (Each) |
|---|---|
| Weight | 10.200000 |
| Frequency Response | 75 Hz - 18kHz |
| Frequency Range | 60 Hz - 20 kHz |
| Power Capacity | 350W (1400W peak), 2 hrs |
| Maximum SPL | 122 dB (128 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 94 dB |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket |
| Dimensions | 68.0 x 42.0 x 44.5 cm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
