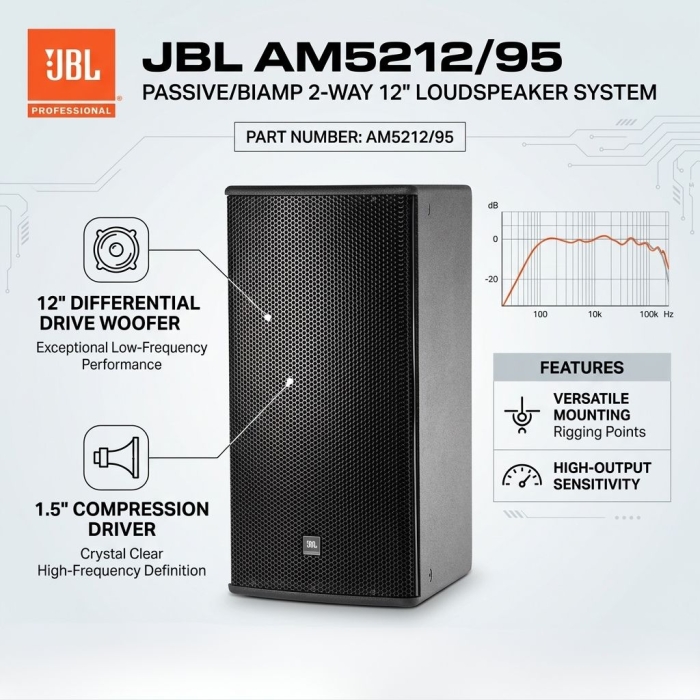

JBL AM5212/95 Passive/Biamp 2-Way 12" Loudspeaker System (Each)
Quick Overview
- Medium Power, Light Weight, Full-Range
- 12" Differential Drive Woofer
- 1.5" Compression Driver
- Progressive Transition Waveguide
- Rotatable Horn for V/H Deployment
- 90° x 50° Coverage
- 43 Hz to 18 kHz Frequency Response
PRODUCT OVERVIEW
JBL Professional AM5212/95 Passive 2-Way 12" Loudspeaker System
The black JBL Professional AM5212/95 Passive 2-Way 12" Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, nightclubs, sports facilities, and theme parks. The AM5212/95 is comprised of the JBL Differential Drive dual-voice-coil and dual-magnetic-gap 262H-1 (12") low-frequency driver and the 2408H-1 high-frequency 1.5" exit, 1.5" voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5212/95 will perform as either a bi-amped or passive cabinet at the flick of a switch.
|
|
|
The large-format PT™ Progressive Transition waveguide provides an excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. A well-controlled off-axis response enhances playability.
Features
- 60° x 40° Coverage
- 262H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White, and WRC/WRX weather-resistant finishes
Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
| Product Name | JBL AM5212/95 Passive/Biamp 2-Way 12" Loudspeaker System (Each) |
|---|---|
| Weight | 20.200000 |
| Frequency Response | 43 Hz – 18 kHz |
| Frequency Range | 37 Hz – 20 kHz |
| Power Capacity | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL | Passive mode: 121 dB-SPL cont avg (127 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 96 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Dimensions | 711 x 369 x 458 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
