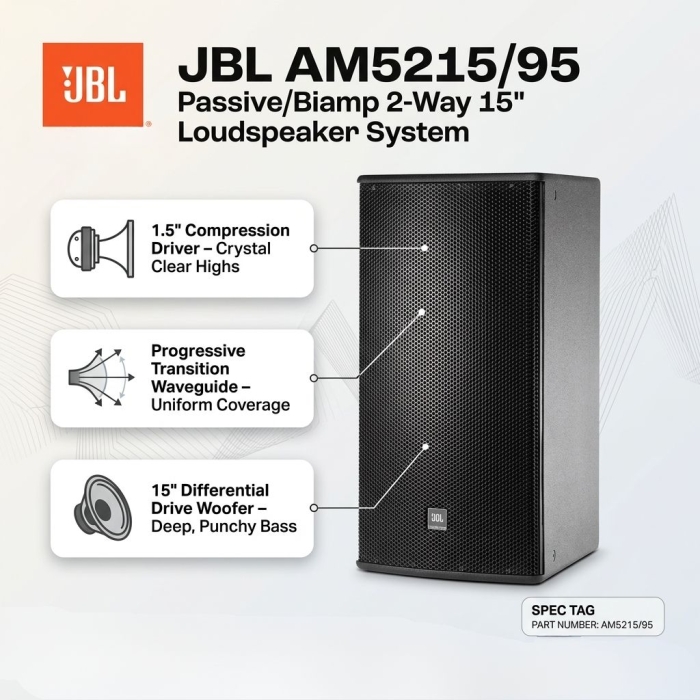

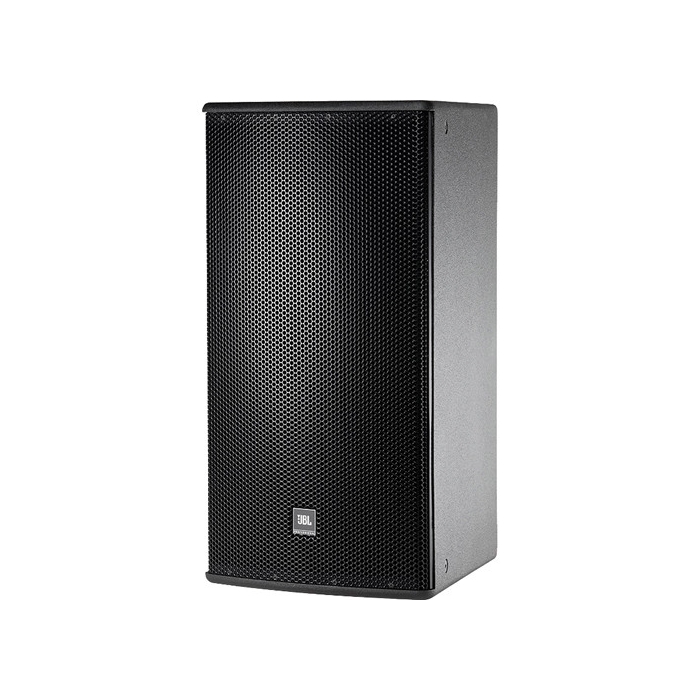

JBL AM5215/95 Passive/Biamp 2-Way 15" Loudspeaker System
The AM5215/95 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low-frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver.
PRODUCT OVERVIEW
2-Way Loudspeaker System with 1 x 15" LF

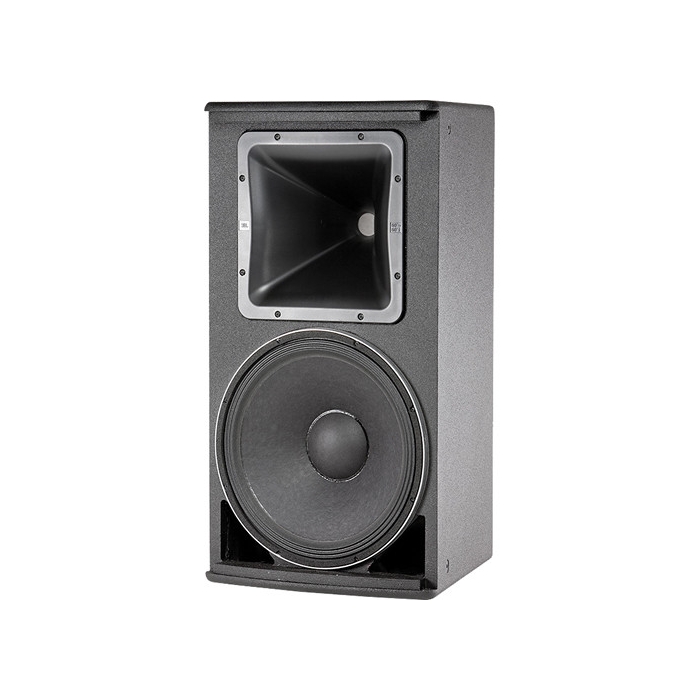

The AM5215/95 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low-frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large-format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. A well-controlled off-axis response enhances playability.
 |
|
Features
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White, and WRC/WRX weather resistant finishes
Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
| Product Name | JBL AM5215/95 Passive/Biamp 2-Way 15" Loudspeaker System |
|---|---|
| Weight | 24.95 Kg |
| Frequency Response | 41 Hz – 18 kHz |
| Frequency Range | 35 Hz – 20 kHz |
| Power Capacity | Passive mode: 350 W (1400 W peak), 100 hrs |
| Maximum SPL | Passive mode: 124 dB-SPL cont avg (130 dB peak) |
| Impedance | 8 ohms |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Dimensions | 781 x 420 x 503 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
