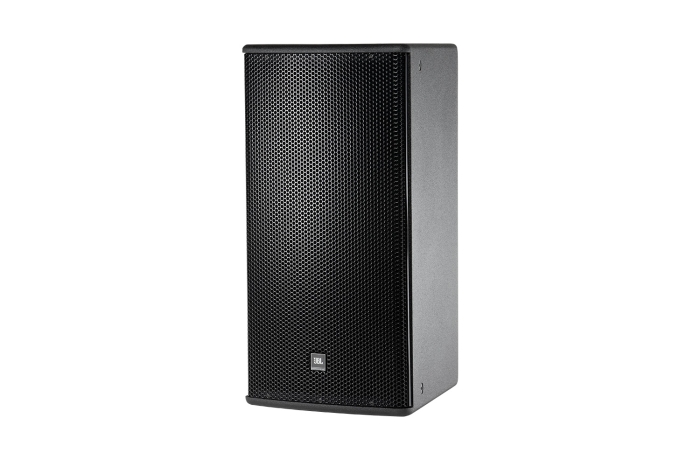

JBL AM7212/00-WRX High Power 2-Way Loudspeaker (Each)
The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver
PRODUCY OVERVIEW
High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn
The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Features
- 2262H Differential Drive® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX finishes
| Product Name | JBL AM7212/00-WRX High Power 2-Way Loudspeaker (Each) |
|---|---|
| Weight | 23.100000 |
| Frequency Response | 42 Hz to 20 kHz |
| Frequency Range | (-10 dB): 36 Hz to 20 kHz |
| Power Capacity | All AES: LF: 1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs |
| Maximum SPL | Bi-amp Mode: LF: 126 dB-SPL cont avg (132 dB peak) HF: 131 dB-SPL cont avg (137 dB peak) Passive Mode: 123 dB-SPL cont avg (127 dB peak) |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | (1W @ 1m): Passive Mode: 95 dB SPL |
| Mounting | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Dimensions | 28.0 x 14.5 x 18.0" (71.1 x 36.9 x 45.8 cm) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
