JBL AM7215/66-WH 2-Way 15" Loudspeaker System Coverage 60 x 60° - White (Each)
SKU
AM7215/66-WH
$4,304
$4,099
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
PRODUCT OVERVIEW
High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

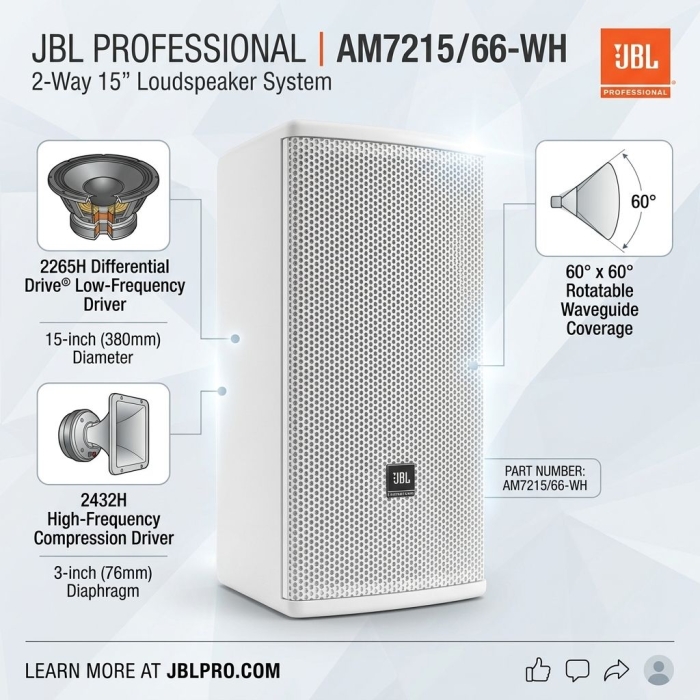

The AM7215/66 speakers are high-power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large-format progressive transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. A well-controlled off-axis response enhances playability.
|
|
|
Features
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
| Product Name | JBL AM7215/66-WH 2-Way 15" Loudspeaker System Coverage 60 x 60° - White (Each) |
|---|---|
| Weight | 27.200000 |
| Frequency Response | 40 Hz – 18 kHz |
| Frequency Range | 34 Hz – 20 kHz |
| Power Capacity | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL | Passive mode: 124 dB-SPL cont avg (130 dB peak) |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | Passive mode: 96 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 780 x 420 x 503 mm |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
