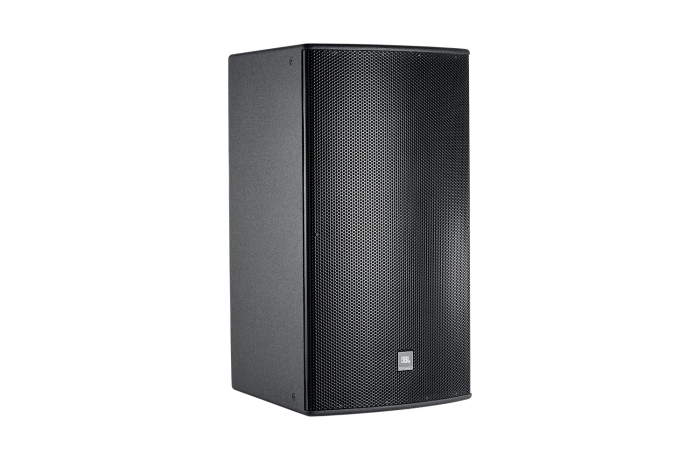

JBL AM7315/64-WRC High Power 3-Way Loudspeaker (Each)
AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation.
PRODUCT OVERVIEW
High Power 3-Way Loudspeaker
AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features
- 2265H Differential Drive® Low-Frequency Driver
- CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
- 2432H High-Frequency Compression Driver
- PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
- Bi-Amp/Tri-Amp Switchable.
Applications
- Performing arts facilities
- Theatrical sound design
- Auditoriums
- Houses of worship
- Live clubs
- Dance-clubs/discotheques
- Sports facilities
- Themed entertainment venues
| Product Name | JBL AM7315/64-WRC High Power 3-Way Loudspeaker (Each) |
|---|---|
| Weight | 45.800000 |
| Frequency Response | 45 Hz – 18 kHz |
| Frequency Range | 38 Hz – 20 kHz |
| Power Capacity | LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs |
| Maximum SPL | LF: 127 dB-SPL cont avg (133 dB peak)Tri-amp mode:MF: 133 dB-SPL cont avg (139 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Bi-amp mode:MF/HF: 133 dB-SPL cont avg (139 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | MF/HF Section in Bi-amp mode: 108 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Mounting | 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Dimensions | 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
