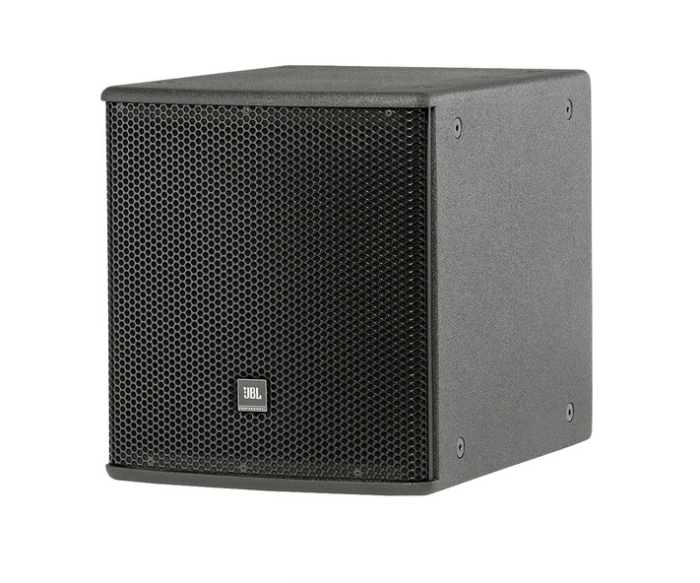

JBL ASB6112-WRX Compact High Power Loudspeaker (Each)
SKU
ASB6112-WRX
$4,261
$4,058
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
PRODUCT OVERVIEW
Compact High Power Single 12" Subwoofer
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Features
- 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Product Name | JBL ASB6112-WRX Compact High Power Loudspeaker (Each) |
|---|---|
| Weight | 16.300000 |
| Frequency Response | 43 Hz – 1 kHz |
| Frequency Range | 35 Hz – 1 kHz |
| Power Capacity | 700 W (2800 W peak), 100 hrs. |
| Maximum SPL | 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Mounting | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware |
| Dimensions | 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
