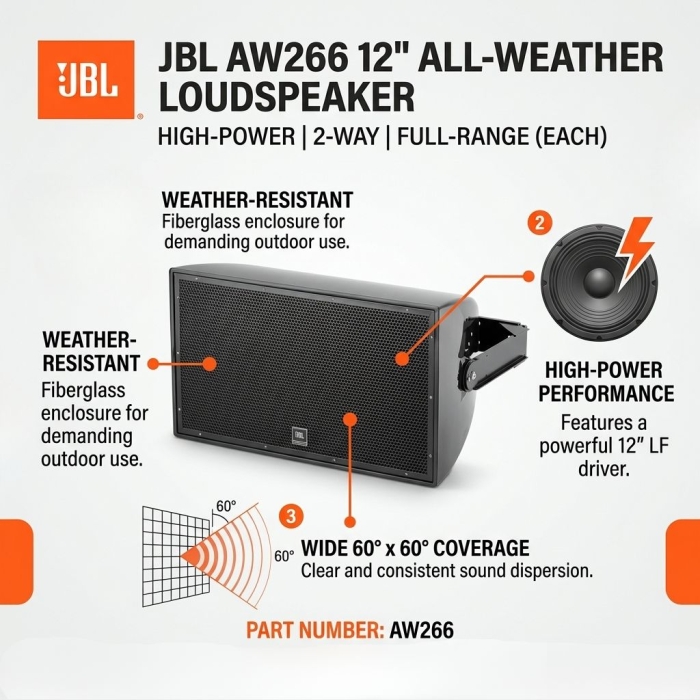

JBL AW266 12" 2-way High Power All-Weather 60 x 60 Full-Range Loudspeaker (Each)
Quick Overview
- High-power 2-way all-weather loudspeaker with 12" LF driver
- Weather-resistant fiberglass enclosure for outdoor use
- Wide 60° x 60° coverage pattern for clear sound dispersion
- JBL Differential Drive low-frequency driver technology
- High-frequency compression driver for detailed audio output
PRODUCT OVERVIEW
High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large-format Progressive Transition waveguide provides excellent 60° x 60° coverage. The loudspeaker system can be used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low-frequency performance.
|
|
|
The 14-gauge stainless steel grille, backed with open-cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100 V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Features
- Weather-Resistant, All Fiberglass Enclosure
- 60° x 60° Coverage
- 2262H Differential Driver® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and black finishes
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
| Product Name | JBL AW266 12" 2-way High Power All-Weather 60 x 60 Full-Range Loudspeaker (Each) |
|---|---|
| Weight | 25.200000 |
| Frequency Response | 51 Hz – 18 kHz |
| Frequency Range | 40 Hz – 20 kHz |
| Power Capacity | 600 W (2400 W peak), 100 hrs |
| Maximum SPL | 126 dB SPL (132 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 98 dB |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
| Dimensions | 409 x 732 x 452 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
