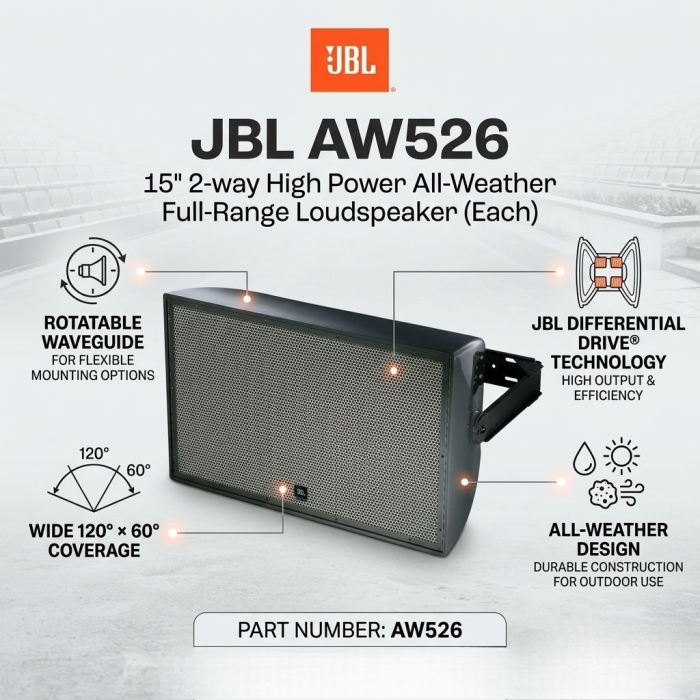

JBL AW526 15" 2-way High Power All-Weather 120 x 60 Full-Range Loudspeaker (Each)
Quick Overview
- High-power 2-way all-weather loudspeaker with 15" LF driver
- Rugged fiberglass enclosure designed for extreme outdoor environments
- Wide 120° × 60° coverage with rotatable waveguide for flexible mounting
- JBL Differential Drive low-frequency technology for high output and efficiency
- High-frequency compression driver ensures clear, detailed sound reproduction
PRODUCT OVERVIEW
High Power 2-Way All-Weather Loudspeaker with 1 x 15" LF
The AW526 is a high-power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and the 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large-format progressive transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation.
|
|
|
The system is equipped with a 400 W 70/100 V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low-frequency performance. The 14-gauge stainless steel grille, backed with open-cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW526 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Features
- Weather-Resistant, All Fiberglass Enclosure
- 120° x 60° Coverage
- 2265H-1 Differential Driver® Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Available in Gray and black finishes
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
| Product Name | JBL AW526 15" 2-way High Power All-Weather 120 x 60 Full-Range Loudspeaker (Each) |
|---|---|
| Weight | 28.300000 |
| Frequency Response | 53 Hz – 18 kHz |
| Frequency Range | 43 Hz – 20 kHz |
| Power Capacity | 500 W (2000 W peak), 100 hrs |
| Maximum SPL | 126 dB-SPL cont avg (132 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 100 dB |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
| Dimensions | 409 x 732 x 452 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
