JBL AW566 15" 2-way High Power All-Weather 60 x 60 Full-Range Loudspeaker Rotatable Horn (Each)
Quick Overview
- High-power 2-way all-weather loudspeaker with 15" LF driver
- Rugged fiberglass enclosure built for harsh outdoor environments
- Wide 120° × 60° coverage with rotatable waveguide for flexible aiming
- JBL Differential Drive low-frequency system for high output efficiency
- High-frequency compression driver for clear, detailed sound
PRODUCT OVERVIEW
High-Power 2-Way All-Weather Loudspeaker with 1 x 15" LF & Rotatable Horn

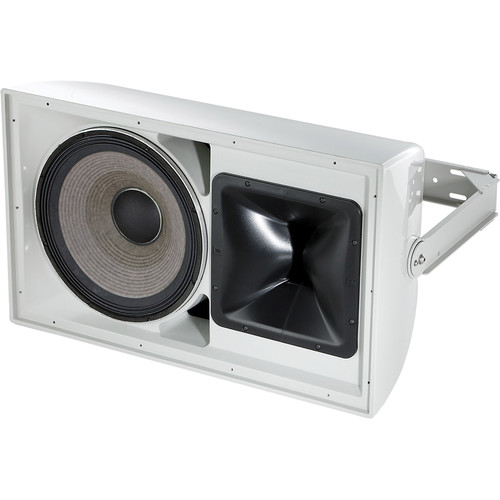

The AW566 is a high-power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and the 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large-format progressive transition waveguide provides excellent 60° x 60° coverage. The loudspeaker system can be used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low-frequency performance.
|
|
|

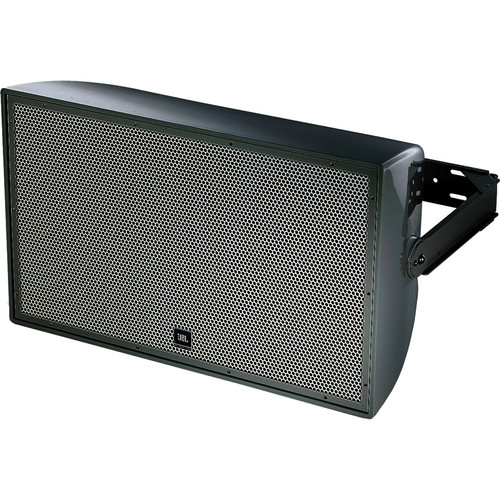

The 14-gauge stainless steel grille, backed with open-cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100 V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Features
- Weather-Resistant, All Fiberglass Enclosure
- 60° x 60° Coverage
- 2265H-1 Differential Driver® Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and black finishes
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
| Product Name | JBL AW566 15" 2-way High Power All-Weather 60 x 60 Full-Range Loudspeaker Rotatable Horn (Each) |
|---|---|
| Weight | 28.300000 |
| Frequency Response | 54 Hz – 18 kHz |
| Frequency Range | 35 Hz – 20 kHz |
| Power Capacity | 600 W (2400 W peak), 100 hrs |
| Maximum SPL | 128 dB-SPL cont avg (134 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 100 dB SPL |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C) |
| Dimensions | 485 x 810 x 478 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
