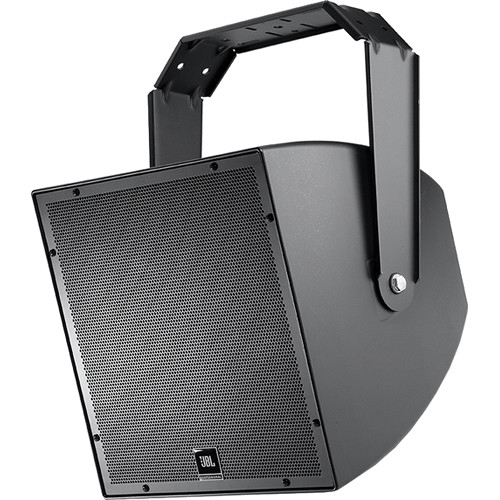

JBL AWC15LF Black 15" Compact Low Frequency Loudspeaker (Each)
The AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.
PRODUCT OVERVIEW
All-Weather Compact Low-Frequency Speaker with 15" LF
The AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.
Features
- Low frequency reinforcement for outdoor applications
- Highly weather-resistant IP56 rating
- Component:
• 380 mm (15 in) woofer with Kevlarreinforced cone and 75 mm (3 in) voice coil. - 500 Watt power handling (average continuous pink noise)
- Frequency range down to 45 Hz
- 300 Watt 70V/100V multi-tap transformer or direct 8Ω low-impedance.
| Product Name | JBL AWC15LF Black 15" Compact Low Frequency Loudspeaker (Each) |
|---|---|
| Weight | 20.200000 |
| Frequency Response | 70 Hz – 1.2 kHz |
| Frequency Range | 45 Hz – 2.2 kHz |
| Power Capacity | 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs. |
| Maximum SPL | Direct 8Ω: 121 dB (peaks of 127 dB) 300 W Tap: 119 dB (peaks of 125 dB) |
| Impedance | 8 ohms (in Direct mode) |
| Sensitivity (SPL / 1 W @ 1 m) | 94 dB (Ave. 80 Hz – 300 Hz) |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Dimensions | 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back |
| Color | Black |
| Country of Origin | United States |
