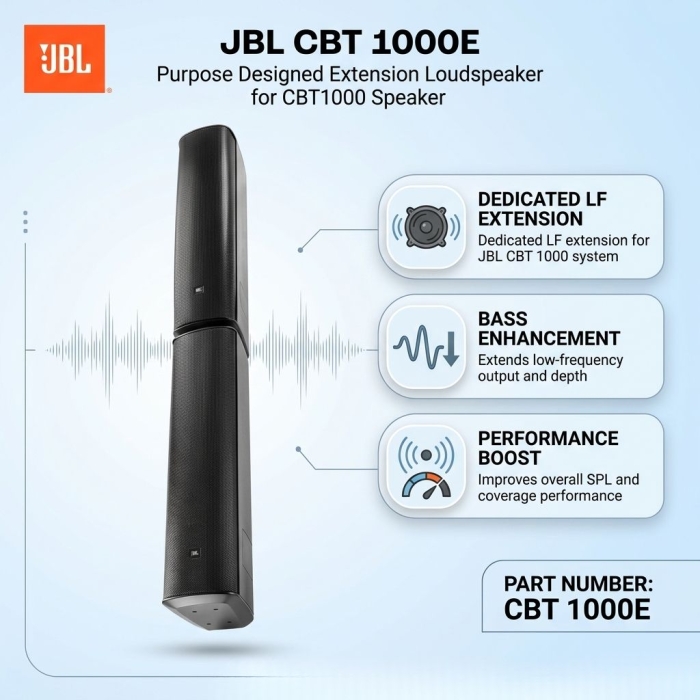

JBL CBT 1000E Purpose Designed Extension Loudspeaker for CBT1000 Speaker (Each)
Quick Overview
- Dedicated LF extension for JBL CBT 1000 system
- Extends low-frequency output and depth
- Improves overall SPL and coverage performance
- Maintains CBT beamforming consistency
- Seamless system integration for installations
PRODUCT OVERVIEW
JBL CBT 1000E Extension Loudspeaker
The black CBT 1000E Extension Loudspeaker from JBL features six 6.5" low-frequency drivers and a purpose-designed crossover network for use in the CBT 1000 and 1000E systems. The drivers feature neodymium magnet motors with 2" diameter voice coils, providing maximum flux in a compact package. The magnetic structure is magnetically shielded, and the copper pole tips reduce flux modulation and minimize distortion. The "0.62"-long coil provides linear drive and high power handling of 1500 W in a compact driver.
|
|
|

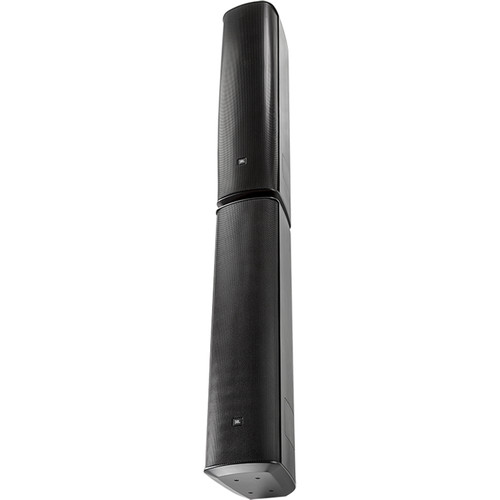

Each driver features damped blended surrounds and coated sealed paper cones. They are coated with diaphragm materials to provide moisture, UV, and salt resistance for outdoor capabilities. This extension speaker comes in a tough, fiberglass-reinforced ABS cabinet. Its thick heavy-duty aluminum grille allows for rust-free installation outdoors. A coupler plate is included for combining this extension speaker with the CBT 1000 array speaker (not included).
Features

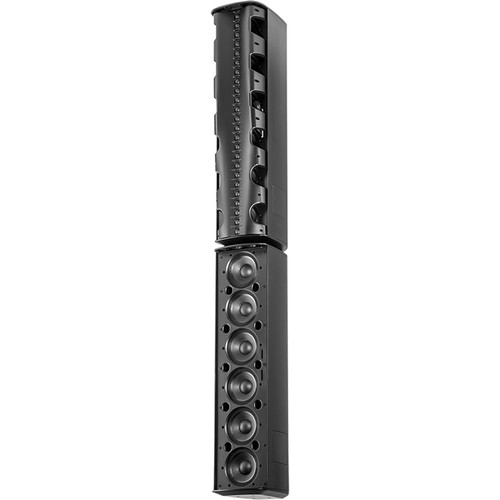

- Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
- 1500 Watt power handling (CBT1000E)
- Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E)
- Coupler plate included (CBT1000E)
- Extended pattern control
- Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
- 3000-watt power handling (CBT1000+1000E)
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000)
- Patent-pending The tapered horizontal waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw), delivering superior coverage in both the front and rear corners of a room (CBT1000)
- Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E)
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000)
- Swivel (pan)/tilt wall bracket and coupler plate included.
| Product Name | JBL CBT 1000E Purpose Designed Extension Loudspeaker for CBT1000 Speaker (Each) |
|---|---|
| Weight | 20.000000 |
| Frequency Response | 38 Hz – 650 Hz |
| Frequency Range | 38 Hz – 650 Hz |
| Power Capacity | 1500 W (6000 W peak), 2 hours 1000 W (4000 W peak), 100 hours |
| Maximum SPL | 124 dB full space, 130 dB half-space (65 to 300 Hz) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 2.83 V at 3.3' (1 m), average 2 to 6 kHz: 92 dB full space 98 dB half-space (65 to 300 Hz) |
| Enclosure | Fiberglass reinforced ABS cabinet, powder-coated 1050 aluminum grille |
| Mounting | 14 x M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket |
| Dimensions | 2040 mm x 250 mm x 345 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
