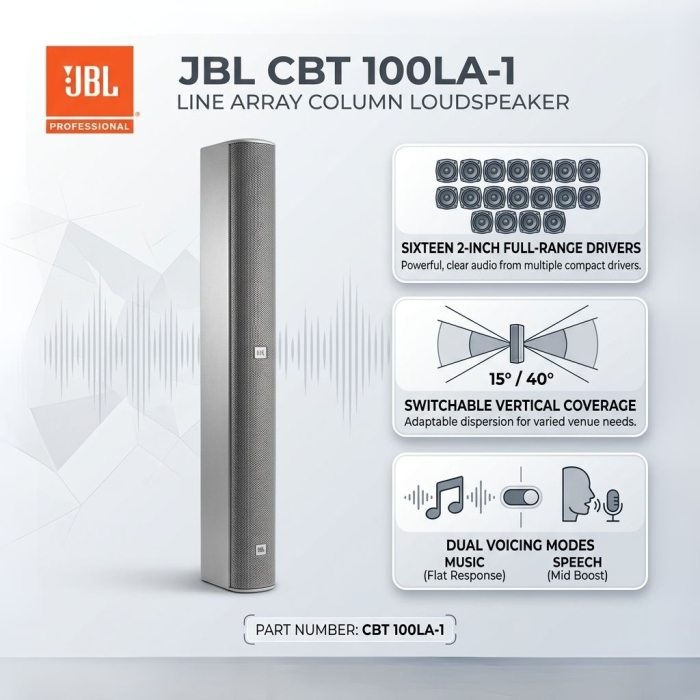

JBL CBT 100LA-1 Line Array Column Loudspeaker with Sixteen 2" Drivers (Each)
Quick Overview
- Provides Constant Directivity
- Reduces Out-of-Coverage Lobing
- Sixteen 2" Full-Range Drivers
- Vertical Coverage Switchable: 15 / 40°
- Voice: Music (Flat) & Speech (Mid Boost)
PRODUCT OVERVIEW

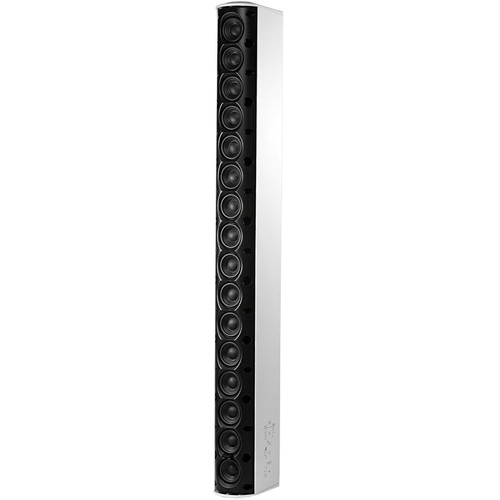

JBL CBT 100LA-1 Line Array Column Loudspeaker
The black JBL CBT 100LA-1 Line Array Column Loudspeaker features Constant Beamwidth Technology (CBT) to provide remarkable pattern control well suited for any indoor or outdoor application, especially those with difficult acoustic environments, such as lecture halls, transit centers, conference rooms, cathedrals, multipurpose spaces, architectural spaces, and in-wall recessed locations. The CBT 100LA-1 utilizes 16 2" full-range drivers that harness the power of CBT, a complex analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
|
|
|
Features
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications. - Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard™ overload protection
- Swivel (pan)/tilt wall bracket included.
- Built-in 70V/100V transformer, plus 8-ohm direct capability.
| Product Name | JBL CBT 100LA-1 Line Array Column Loudspeaker with Sixteen 2" Drivers (Each) |
|---|---|
| Weight | 7.200000 |
| Frequency Response | 80 Hz – 20 kHz |
| Frequency Range | 80 Hz – 20 kHz |
| Power Capacity | 8 ohms Setting: 325 W (1300 W peak), 2 hours 200 W (800 W peak), 100 hours |
| Maximum SPL | Music Mode: 115 dB continuous averaged (121 dB peak) |
| Impedance | 8 ohms (in Thru mode) |
| Sensitivity (SPL / 1 W @ 1 m) | Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz) |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Mounting | Included wall bracket provides continuously adjustable ±15° tilt, as well as 5° fixed increment points |
| Dimensions | 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
