JBL CBT 100LA-LS Straight Line-Array Column Loudspeaker with 16 x 2” Drivers & EN54:24 Certification (Each)
SKU
CBT-100LA-LS
$1,683
$1,603
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- EN54-24 certified column loudspeaker for voice alarm and evacuation systems
- Constant Beamwidth Technology ensures uniform sound coverage
- 16 × 2” driver array for high intelligibility and controlled dispersion
- Optimized for speech clarity in large reverberant environments
- Designed for fixed installation in commercial and public venues
PRODUCT OVERVIEW

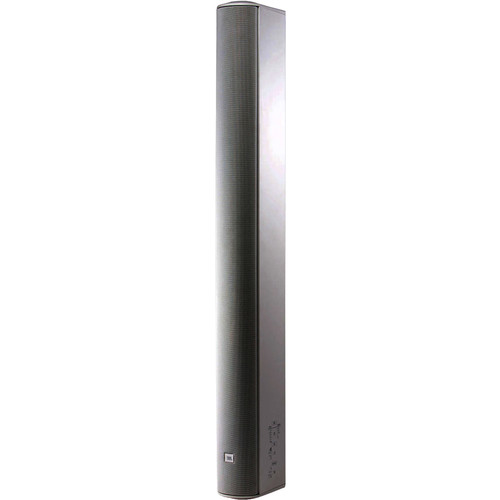

JBL CBT 100LA-LS Line-Array Column Loudspeaker

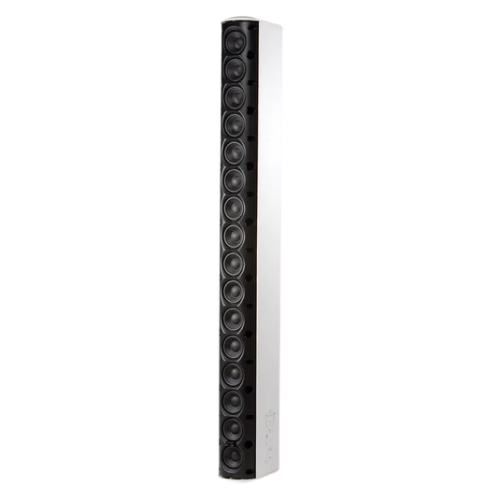

The black CBT 100LA-LS Line-Array Column Loudspeaker from JBL contains 16 drivers (2” each) and features the Constant Beamwidth Technology which utilizes complex analog delay beam-forming and amplitude-tapering to achieve consistent vertical coverage, avoiding narrow vertical beaming and out-of-coverage lobing. The vertical pattern coverage is switchable between 40° for medium-throw coverage and 15° for long-throw applications. This EN54:24 certified loudspeaker comes with a built-in 70/100V transformer, plus 8 ohms direct capability.
|
|
|
Features
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications. - Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard™ overload protection
- Swivel (pan)/tilt wall bracket included.
- Built-in 70V/100V transformer, plus 8-ohm direct capability.
| Product Name | JBL CBT 100LA-LS Straight Line-Array Column Loudspeaker with 16 x 2” Drivers & EN54:24 Certification (Each) |
|---|---|
| Weight | 7.200000 |
| Frequency Response | (-10dB), 120 Hz – 20 kHz |
| Frequency Range | 120 Hz – 20 kHz |
| Power Capacity | 8 ohms Setting: 325 W (1300 W peak), 2 hours 200 W (800 W peak), 100 hours |
| Maximum SPL | Music Mode: 115 dB continuous averaged (121 dB peak) |
| Impedance | 8 ohms (in Thru mode) |
| Sensitivity (SPL / 1 W @ 1 m) | Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz) |
| Enclosure | Fiberglass-reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille |
| Mounting | Included wall bracket provides continuously adjustable ±15° tilt, as well as 5° fixed increment points |
| Dimensions | 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
