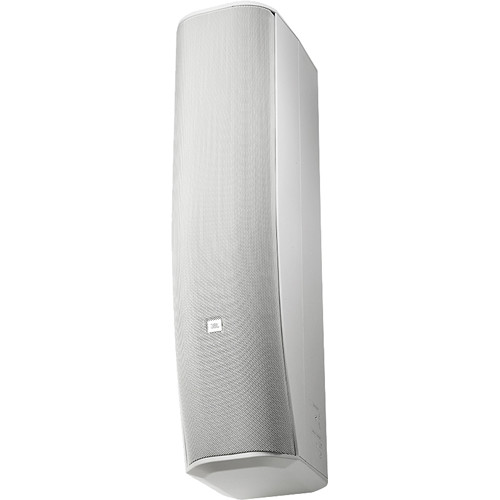

JBL CBT 70J-1-WH Coaxial Line Array Column J-Shaped Loudspeaker (Each)

PRODUCT OVERVIEW

JBL CBT 70J-1 Line Array Column Loudspeaker

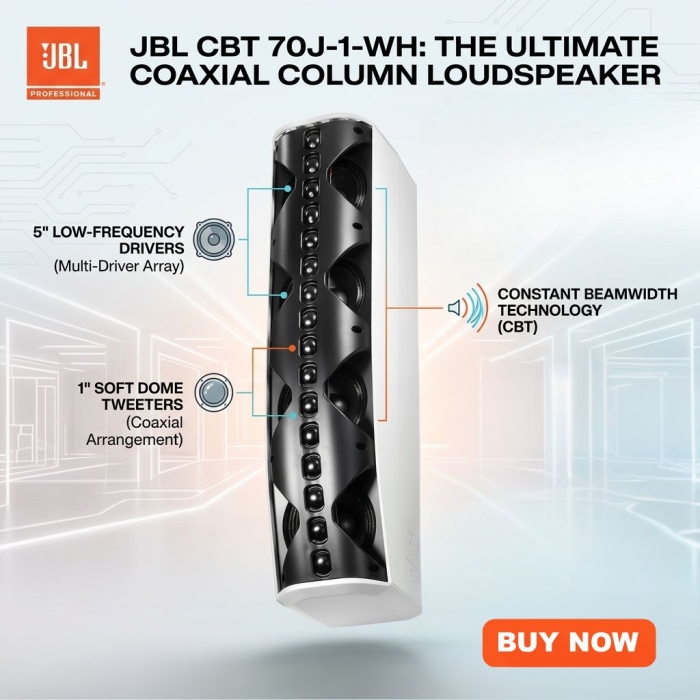

The black CBT 70J-1 from JBL is a 2-way line array column loudspeaker, ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more. The unit features four 5" high-power low-frequency drivers and sixteen 1" soft dome tweeters to provide plenty of power and a wide frequency response.

The asymmetrical vertical coverage provides consistent front-to-back sound levels, while the patent-pending Constant Beamwidth Technology provides constant directivity and reduces out-of-coverage lobing. The vertical pattern coverage is switchable between 45° and 25°, allowing you to choose the best use for medium-throw or long-throw applications.

Switchable voicing provides a flat response in music mode and a mid-range presence boost in speech mode to accommodate music and speech programs. Built-in SonicGuard technology provides overload protection for HF devices. This model includes an improved mounting bracket that affords enhanced aiming flexibility and a stronger grille.

Features

• Asymmetrical vertical coverage sends more sound toward the far area of the room to make front-to-back sound levels more consistent.

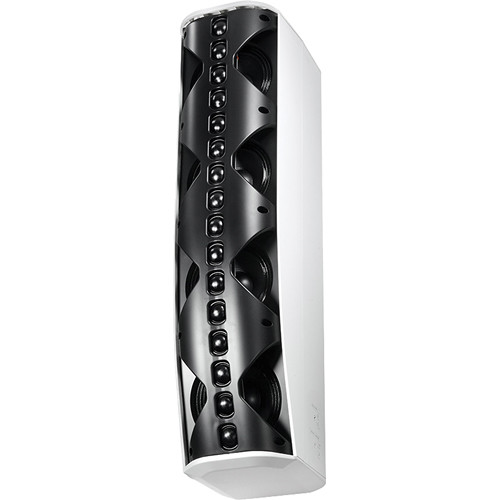

• Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
  arranged coaxially.
• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
  long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection of HF devices
• Swivel (pan) / tilt wall bracket included.
