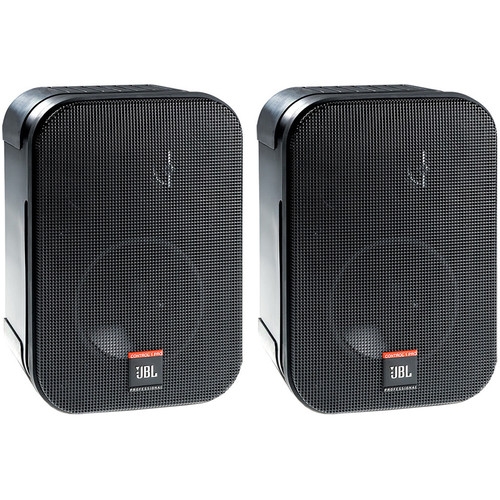

JBL Compact 10W/8-Ohms Two-Way Loudspeaker with Multi-Tap Transformer (Pair)
CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8-ohm direct mode. The 135 mm (5.25 inch) low-frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
PRODUCT OVERVIEW
Compact Two-Way 100V/70V/8-Ohm Loudspeaker
CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8-ohm direct mode. The 135 mm (5.25 inch) low-frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
Features
-
10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
-
8 Ohm Direct Setting
-
Included Wall-Mounting Bracket
-
Professional Drivers and Network
| Product Name | JBL Compact 10W/8-Ohms Two-Way Loudspeaker with Multi-Tap Transformer (Pair) |
|---|---|
| Weight | 2.000000 |
| Frequency Response | 120 Hz – 16 kHz |
| Frequency Range | 85 Hz – 18 kHz |
| Power Capacity | 60 Watts |
| Maximum SPL | 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting |
| Impedance | 8 ohms (in 8Ω DIRECT mode, selectable on back panel) |
| Sensitivity (SPL / 1 W @ 1 m) | 86 dB SPL |
| Enclosure | Polypropylene Structural Foam |
| Mounting | Wall-Mounting |
| Dimensions | 229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
