JBL CONTROL 12C-VA 3" Compact Ceiling Loudspeaker for EN54-24 Application (Each)
Quick Overview
- 68 Hz – 17 kHz frequency response
- 130° conical wide coverage pattern
- 15W multi-tap transformer for 70V/100V systems
- 8Ω low-impedance operation supported
- Sensitivity: 84 dB (1 kHz – 16 kHz)
PRODUCT OVERVIEW

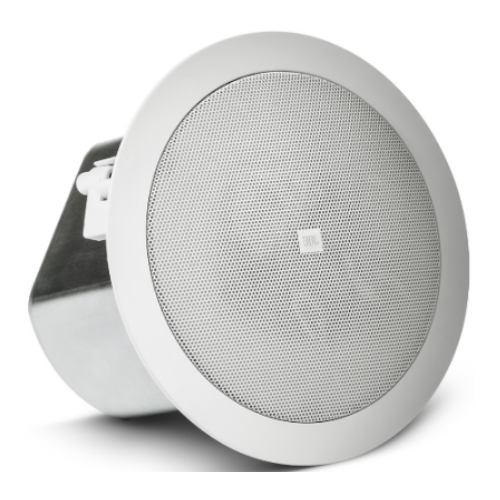

3" Compact Ceiling Loudspeaker for EN54-24 Application
Control 12C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 76 mm (3 inches) full-range driver mounted in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5VB flammability-rated material, with a preattached blind-mount back for quick and easy installation.
The speaker is designed to provide excellent sound quality for a wide variety of low-to-medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off-axis and on-axis.
Features

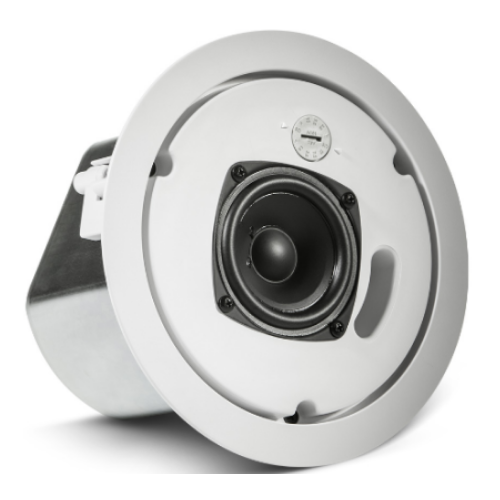

- 76 mm (3 in) full-range driver
- EN54-24 Compliant
- Blind-mount back for quick and easy install
- Combined 70V/100V and low-impedance direct operation
- 20 Watts at 8Ω nominal setting
- 15W multi-tap at 70V/100V
- 68 Hz – 17 kHz bandwidth with wide 130° coverage
| Product Name | JBL CONTROL 12C-VA 3" Compact Ceiling Loudspeaker for EN54-24 Application (Each) |
|---|---|
| Weight | 1.600000 |
| Frequency Response | 95 Hz – 15 kHz |
| Frequency Range | 68 Hz – 17 kHz |
| Power Capacity | 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise |
| Maximum SPL | 97 dB @ 1 m (3.3 ft) average, 103 dB peak |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Sensitivity (SPL / 1 W @ 1 m) | 84 dB (1kHz - 16 kHz) |
| Mounting | In Ceiling |
| Dimensions | 196 mm diameter x 174 mm from the back of baffle to back of gland nut (7.7 in diameter x 6.9 in in-depth) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
