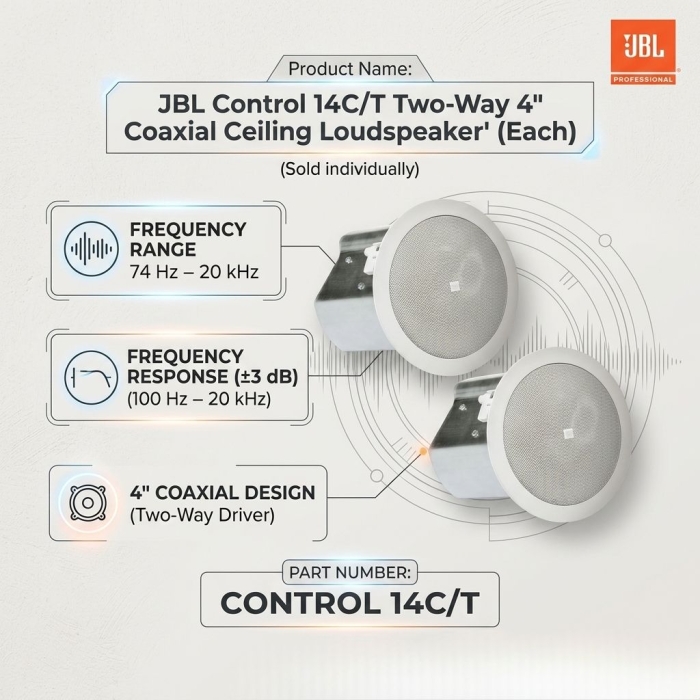

JBL Control 14C/T Two-Way 4" Coaxial Ceiling Loudspeaker (Each)
Quick Overview
- 4" (100 mm) polypropylene cone LF driver
- 0.75" (19 mm) soft-dome liquid-cooled HF tweeter
- Frequency range: 74 Hz – 20 kHz
- Frequency response: 100 Hz – 20 kHz (±3 dB)
- 120° conical wide coverage pattern
PRODUCT OVERVIEW
Two-Way 4" Coaxial Ceiling Loudspeaker

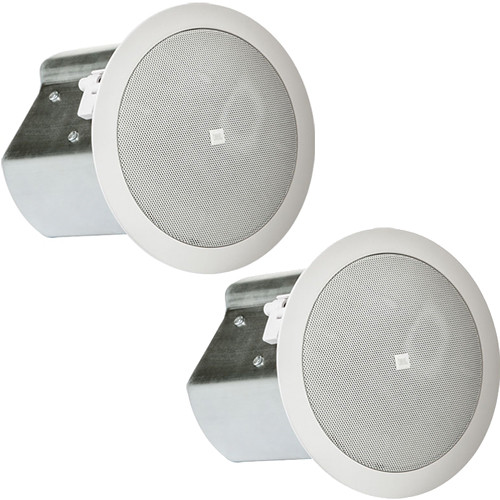

The pair of white Professional Series Control 14C/T Two-Way 4" Coaxial Ceiling Loudspeakers from JBL is designed to provide enhanced sound quality for a wide variety of medium-volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

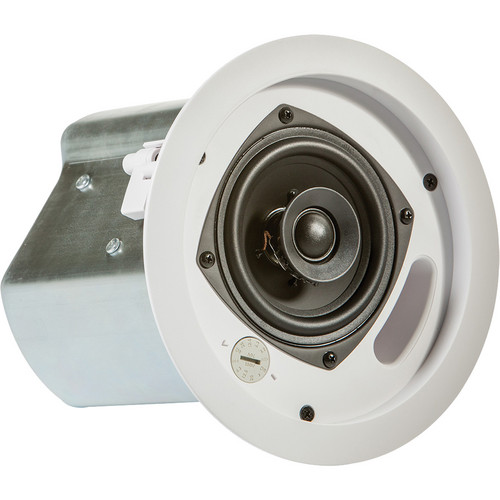

These full-range ceiling speakers consist of a 4” (100mm) high-tech cone driver and a 19mm soft-dome, liquid-cooled tweeter mounted in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. The 120° coverage delivers consistent sound quality for listeners located both off and on axis.
The 4” (100 mm) low-frequency driver is designed with a lightweight, high-temperature anodized aluminum voice coil former and a high-temperature grade voice coil for stable performance and reliability under long-term, high-power working conditions. The butyl rubber surround provides long-term durability and good sonic damping, while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with the linear suspension spider design, allow for a smooth frequency response and more consistent off-axis performance. The 3/4” (19 mm) high-frequency driver features a highly damped, treated silk dome for clear and warm sound; a lightweight Kapton voice coil for improved high-frequency response and reliability; low-viscosity liquid cooling for power handling and reliability; and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.
Features
- Components:
• 100 mm (4.0 in) high-output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter - Blind-mount back for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low-impedance direct operation
• 30 Watts at 8Ω nominal setting
• 25W multi-tap at 70V/100V - 74 Hz – 20 kHz bandwidth with a wide 120° coverage
- White or black (-BK)
| Product Name | JBL Control 14C/T Two-Way 4" Coaxial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 2.200000 |
| Frequency Response | 100 Hz – 20 kHz |
| Frequency Range | 74 Hz – 20 kHz |
| Power Capacity | 60 Watts Continuous Program Power 30 Watts Continuous Pink Noise |
| Maximum SPL | 102 dB @ 1 m (3.3 ft) average, 108 dB peak |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Sensitivity (SPL / 1 W @ 1 m) | 87 dB (1kHz - 16 kHz) |
| Mounting | In Ceiling |
| Dimensions | 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
