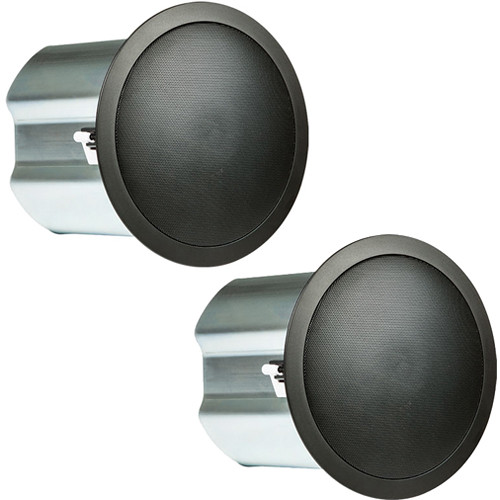

JBL Control 16C/T-BK 2-Way 6.5" Coaxial Ceiling Loudspeakers (Each)
Quick Overview
- BGM Speakers for Retail, Lounges & More
- Coaxial Design
- 6.5" Cone Driver
- 0.75" Soft-Dome Tweeter
- Smooth Frequency Response On or Off Axis
- 62 Hz to 20 kHz with 110° Coverage
PRODUCT OVERVIEW
Two-Way 6.5" Coaxial Ceiling Loudspeaker
The JBL Control 16C/T-BK is a high-performance 2-way coaxial ceiling loudspeaker designed for commercial installations requiring clear speech intelligibility and high-quality background music reproduction.
Built for 70V/100V distributed audio systems and low impedance operation, it delivers flexibility for retail, hospitality, corporate, and public spaces.
|
|
|
The drivers themselves are designed using a high-temperature anodized aluminum voice coil former and a high-temperature voice coil to ensure a reliable performance throughout years of continuous use. Butyl rubber encloses the drivers, offering further durability, as well as sonic damping. The cone itself is resistant to both water and humidity. Thanks to an FEA-optimized motor construction, the Control 16C/T-BK achieves a smooth frequency response.
Features
- Components:

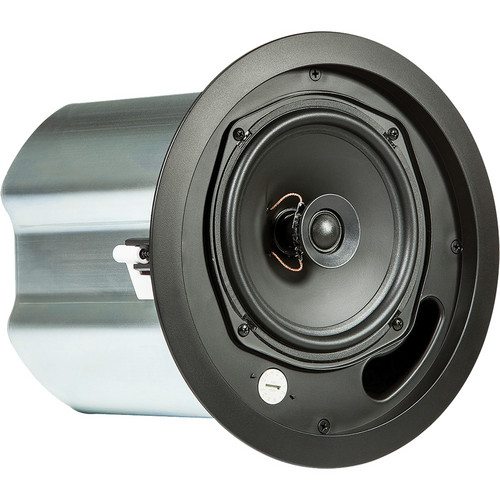

• 165 mm (6.5 in) high-output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter - Blind-mount back can for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low-impedance direct operation
•50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V - 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL
- White or black (-BK)
| Product Name | JBL Control 16C/T-BK 2-Way 6.5" Coaxial Ceiling Loudspeakers (Each) |
|---|---|
| Weight | 3.400000 |
| Frequency Response | 96 Hz – 15 kHz |
| Frequency Range | 62 Hz – 20 kHz |
| Power Capacity | 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise |
| Maximum SPL | 108 dB @ 1 m (3.3 ft) average, 116 dB peak |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Sensitivity (SPL / 1 W @ 1 m) | 91 dB (1kHz - 16 kHz) |
| Mounting | In Ceiling |
| Dimensions | 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
