JBL CONTROL 16C-VA 6.5" Two-Way Co-axial Ceiling Loudspeaker (Each)
Quick Overview
- 6.5” coaxial high-output driver system
- Wide 110° sound coverage for uniform distribution
- Supports 70V / 100V line & 8Ω operation

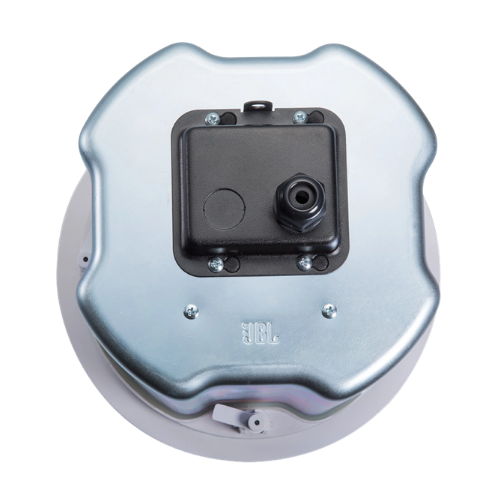

- Integrated blind-mount backcan for fast installation
- High clarity for speech and background music
PRODUCT OVERVIEW
Two-Way 6.5" Co-axial Ceiling Loudspeaker for EN54-24 Applications

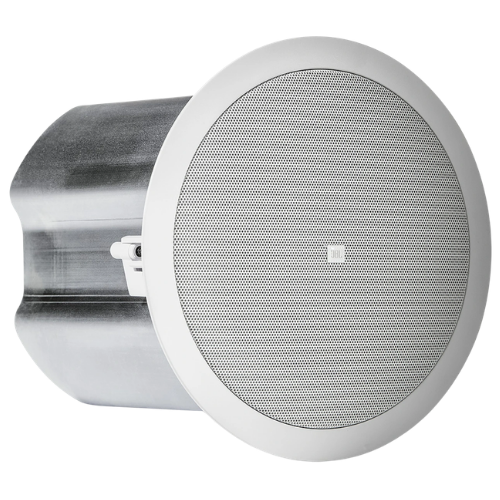

Control 16C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 165 mm (6.5 inch) high-tech cone driver and a 19 mm soft-dome liquid-cooled tweeter mounted in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5VB flammability-rated material, with an integrated backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium- to high-volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis. This loudspeaker is EN 54-24 compliant for life safety applications.
The speaker is designed to provide excellent sound quality for a wide variety of medium- to high-volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off-axis and on-axis.
|
|
|
Features
- Components:

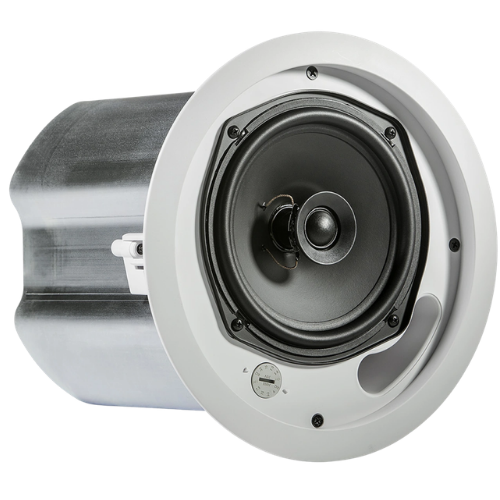

• 165 mm (6.5 in) high-output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter - EN54-24 Compliant
- Blind-mount back can for quick and easy install
- Combined 70V/100V and low-impedance direct operation
• 50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V - 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL
| Product Name | JBL CONTROL 16C-VA 6.5" Two-Way Co-axial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 3.400000 |
| Frequency Response | 96 Hz – 15 kHz |
| Frequency Range | 62 Hz – 20 kHz |
| Power Capacity | 100W Continuous Program Power 50W Continuous Pink Noise |
| Maximum SPL | 108 dB @ 1 m (3.3 ft) average, 116 dB peak |
| Impedance | » 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) |
| Sensitivity (SPL / 1 W @ 1 m) | 91 dB |
| Enclosure | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; zinc-plated steel backcan |
| Mounting | In Ceiling |
| Dimensions | 253 mm diameter x 262 mm from back of baffle to back of gland nut (10.0 in diameter x 10.3 in depth) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
