JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- Powerful 8” coaxial driver system
- High output: 90W power handling (8Ω)
- Supports 70V / 100V line & 8Ω operation
- High SPL: up to 112 dB output
- Wide 90° conical coverage
- Integrated blind-mount backcan for easy installation
PRODUCT OVERVIEW
Two-Way 8-Inch Coaxial Ceiling Loudspeaker

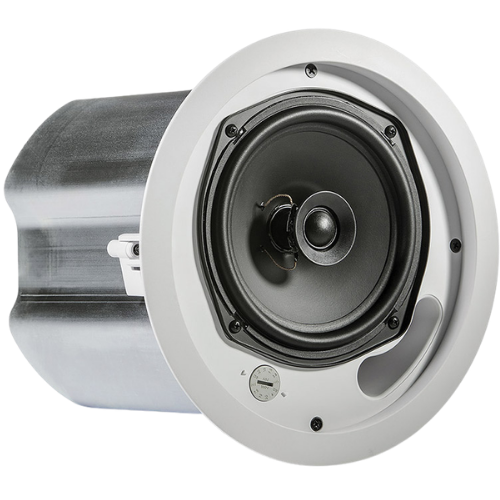

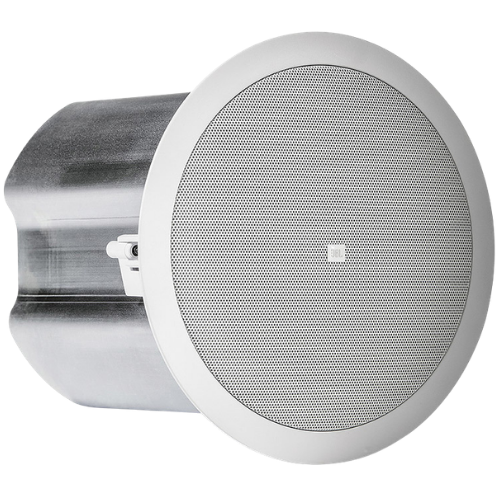

Control 18C/T is a full-range ceiling speaker consisting of a 200 mm (8.0 inch) high-tech cone driver and a 25 mm soft-dome liquid-cooled tweeter mounted in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
The speaker is designed to provide excellent sound quality for a wide variety of medium- to high-volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.
|
|
|
Features
- 200 mm (8.0 in) high output driver with polypropylene cone and butyl rubber surround
- 25 mm (1.0 in) soft-dome liquid-cooled tweeter
- Blind-mount backcan for quick and easy installation
- Dual conduit/cable clamps
- Combined 70V/100V and low-impedance direct operation
•90 Watts at 8Ω nominal setting
•60W multi-tap at 70V/100V - 58 Hz – 20 kHz bandwidth with 90° coverage
- High 92 dB sensitivity for high maximum SPL
- White or black (-BK)
| Product Name | JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 6.400000 |
| Frequency Response | 80 Hz – 16 kHz |
| Frequency Range | 58 Hz – 20 kHz |
| Power Capacity | 180 Watts Continuous Program Power 90 Watts Continuous Pink Noise |
| Maximum SPL | 112 dB @ 1 m (3.3 ft) average, 118 dB peak |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Sensitivity (SPL / 1 W @ 1 m) | 92 dB |
| Mounting | In Ceiling |
| Dimensions | 307 mm diameter x 274 mm depth from back of baffle (12.1 in diameter x 10.8 in depth)depth) |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
