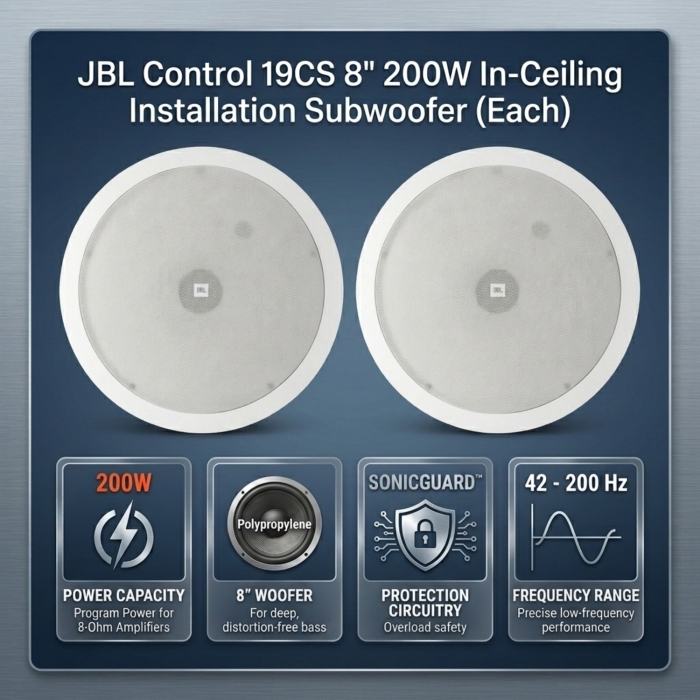

JBL Control 19CS 8" 200W In-Ceiling Installation Subwoofer (Each)
Quick Overview
- 8" Polypropylene Woofer
- 200W Program Power Capacity
- For 8-Ohm Power Amplifiers
- SonicGuard Protection Circuitry
- 42 to 200 Hz Frequency Range
PRODUCT OVERVIEW
In-Ceiling Subwoofer

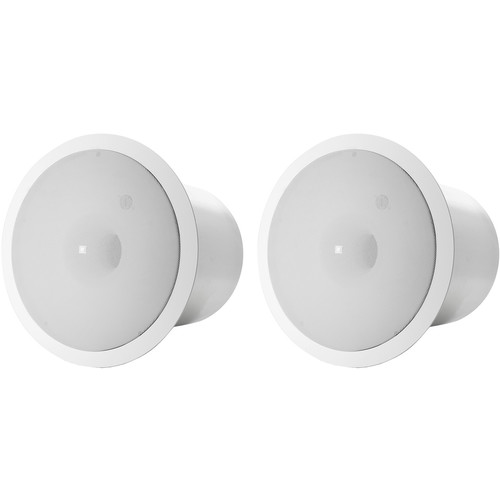

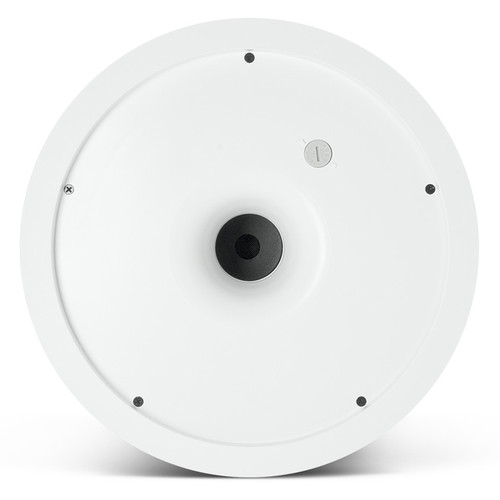

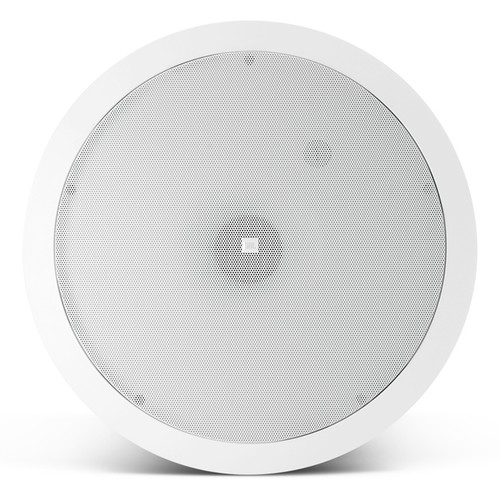

Sold as a pair, the white JBL Control 19CS is a passive 8" in-ceiling installation subwoofer with SonicGuard overload protection circuitry designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues, ranging from boardrooms to bistros. When driven by 8-Ohm power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CS is equipped with a durable 8" polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz.
The nested chamber design and linear dynamics port yield extended bass response, high output, and sonically transparent acoustic low-pass properties. The removable locking connector, C-shaped support backing plate, tile support rails, cutout template, and paint shield contribute to easy installation.
|
|
|
Features
- The unique Nested Chamber™ design and Linear Dynamic Aperture™ port design deliver high output from a compact enclosure.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Component: Long excursion 200 mm (8 in) driver.
- Packaged with a grille, back can, and tile rails for fast installation and easy stocking.
- Simple installation and wire connection method.
| Product Name | JBL Control 19CS 8" 200W In-Ceiling Installation Subwoofer (Each) |
|---|---|
| Weight | 5.500000 |
| Frequency Range | 42 Hz – 200 Hz |
| Power Capacity | 200W Continuous Program Power 100W Continuous Pink Noise |
| Maximum SPL | 115 dB @ 1 m (3.3 ft) in ceiling near corner (pi/2) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 95 dB SPL (Corner Mount) 89 dB SPL (Ceiling-Center Mount) |
| Enclosure | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Mounting | In-Ceiling |
| Dimensions | 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
