JBL Control 226CT 6.5" 2-Way 150W Coaxial Ceiling Loudspeaker (Each)
Quick Overview
- 6.5" Kevlar-Reinforced Woofer
- 1" Exit Compression Driver
- 150W Long-Term Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Multi-Tap Transformer
- 74 Hz to 17 kHz Frequency Response
- High-Slope Crossover Network
PRODUCT OVERVIEW
6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

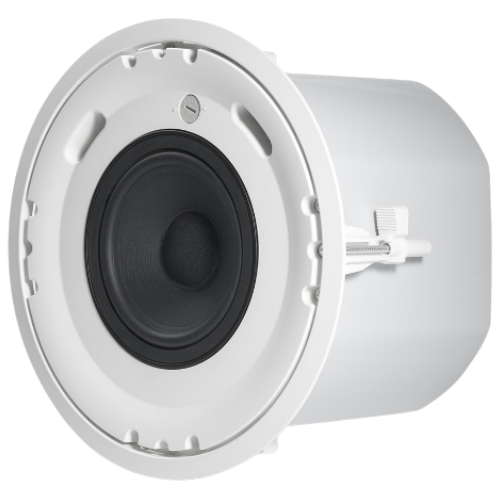

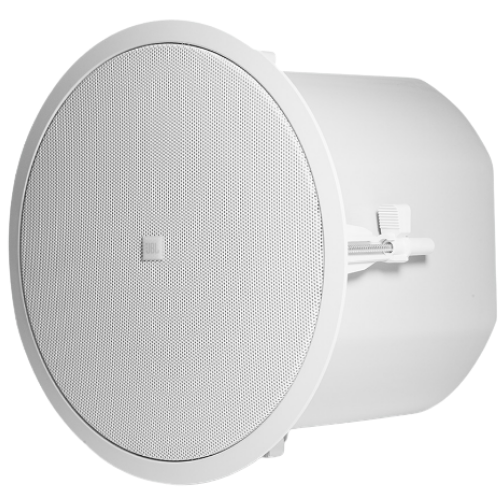

Sold as a pair, the white JBL Control 226CT is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The low-saturation transformer features a baffle-mounted impedance switch that allows the Control 226CT to be driven by 70V/100V or 8-Ohm power amplifiers (available separately). Each Control 226CT is equipped with a durable 6.5" Kevlar-reinforced woofer and a 1" exit titanium compression driver, yielding a frequency response of 74 Hz to 17 kHz and a long-term power capacity of 150W.

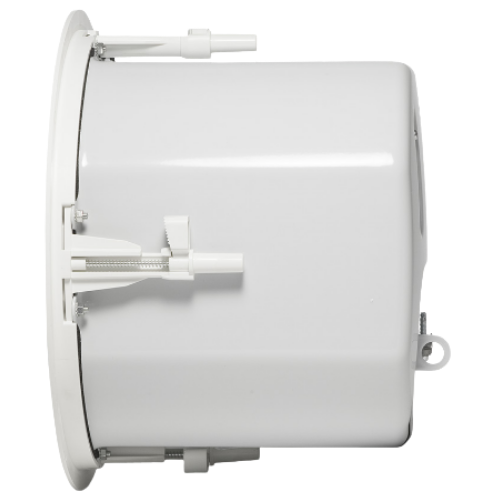

The high-slope crossover network ensures natural midrange tonality and proper frequency distribution to the speaker components. Removable locking input connectors, press-in grilles, and C-ring / tile rail suspension systems contribute to easy installation.
|
|
|
Features
- Consistent 120° broadband pattern control for exceptional coverage
- Coaxial design featuring:
Kevlar-reinforced 165 mm (6.5 in) woofer
25 mm (1 in) compression driver - Extraordinary clarity for speech and vocals with extended frequency response for music
- 150 Watts Power Handling
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Integrated back can with clean, contemporary grille
| Product Name | JBL Control 226CT 6.5" 2-Way 150W Coaxial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 9.100000 |
| Frequency Response | 74 Hz - 17 kHz |
| Frequency Range | 47 Hz - 19 kHz |
| Power Capacity | 100 W (400 W peak), 100 hrs |
| Maximum SPL | 112 dB continuous average (118 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 90 dB (1 kHz - 16 kHz) |
| Enclosure | Two removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm) 1) + in, 2) – in, A) + loop thru, B) – loop thru |
| Mounting | In Ceiling |
| Dimensions | Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
