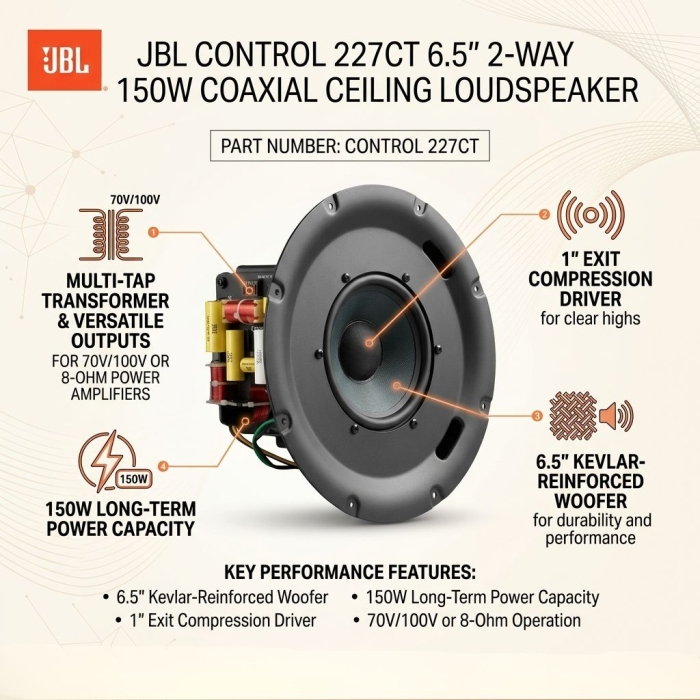

JBL Control 227CT 6.5" 2-Way 150W Coaxial Ceiling Loudspeaker (Each)
Quick Overview
- 6.5" Kevlar-Reinforced Woofer
- 1" Exit Compression Driver
- 150W Long-Term Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Multi-Tap Transformer
- 75 Hz to 17 kHz Frequency Response
- 120° Broadband Pattern Control
PRODUCT OVERVIEW
6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver with 60W Multi-Tap Transformer
The JBL Control 227CT is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The low-saturation transformer allows the Control 227CT to be driven by 70V/100V or 8-Ohm power amplifiers (available separately). Equipped with a durable 6.5" Kevlar-reinforced woofer and a 1" exit titanium compression driver, the Control 227CT yields a frequency response of 74 Hz to 17 kHz, and a long-term power capacity of 150W.

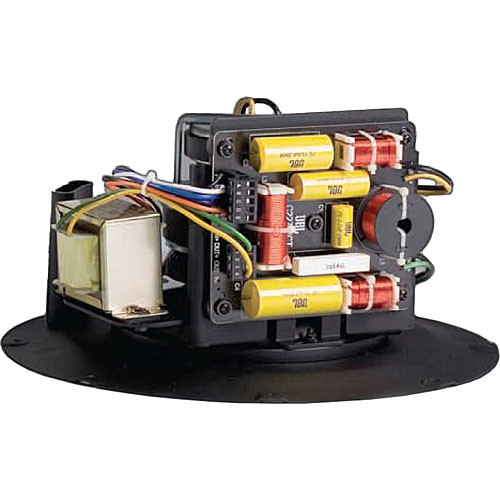

Its high-slope crossover network ensures natural midrange tonality and proper frequency distribution to the speaker components. A removable locking input connector ensures simple wiring installation. The Control 227CT delivers reliable broadband coverage of 120 degrees.
Features
- Consistent 120° broadband pattern control for exceptional coverage.
- Coaxial design featuring:
Kevlar-reinforced 165 mm (6.5 in) woofer.
25 mm (1 in) compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- 150 Watts Power Handling.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- The separate back can and contemporary grille available. (sold separately)
| Product Name | JBL Control 227CT 6.5" 2-Way 150W Coaxial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 5.200000 |
| Frequency Response | 75 Hz - 17 kHz |
| Frequency Range | 43 Hz - 19 kHz |
| Power Capacity | 100 W (400 W peak), 100 hrs |
| Maximum SPL | 112 dB continuous average (118 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | (2.83V @ 1 m): 90 dB4 |
| Enclosure | Removable locking connector with screw-down terminals. Max wire 12 AWG (2.5 mm) |
| Mounting | Ceiling |
| Dimensions | Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
