JBL Control 24CT 4” 2-Way 70V/100V Ceiling Speaker with Transformer (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- Compact Ceiling Speaker
- For Background and Foreground Music
- For Paging Sound Systems
- Coaxial Speaker 4" Woofer & 3/4" Tweeter
- Frequency Response: 80 Hz to 20 kHz
- 130° Coverage
- 70V/100V Transformer Taps
- SonicGuard Overload Protection
PRODUCT OVERVIEW
Background/Foreground Ceiling Loudspeakers

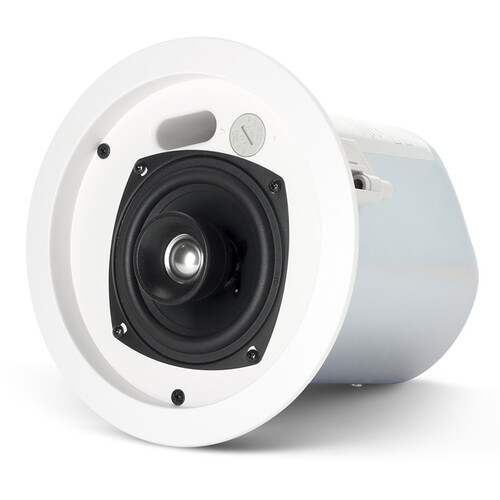

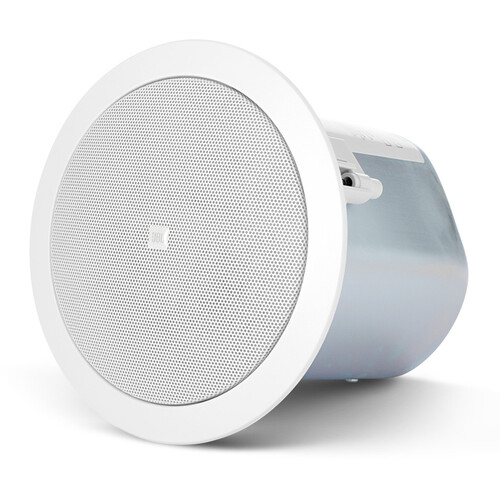

The white JBL Control 24CT Ceiling Speaker features high-power sound reproduction with a wide frequency response and low distortion. The 130° coverage pattern allows fewer speakers to provide consistent sound levels throughout a space.
The Control 24CT is constructed with a coaxially mounted 4" woofer with a butyl rubber surround and a 0.75" titanium-coated diffraction-loaded tweeter. It includes a 30W multitap transformer for use in either 70V or 100V distributed-line systems. Taps are selected by a front-panel rotary switch. The transformer effectively limits the power to the speaker, so overload is not a concern.
|
|
|
Features
- Coaxially mounted 100 mm (4 in) woofer with a butyl rubber surround and a 19 mm (.75 in) titanium-coated diffraction-loaded tweeter.
- High power, wide frequency response, and low distortion for high sound-level capability.
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance. - JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Packaged with a grill, back can, and tile rails for fast installation and easy dealer stocking.
| Product Name | JBL Control 24CT 4” 2-Way 70V/100V Ceiling Speaker with Transformer (Each) |
|---|---|
| Weight | 3.500000 |
| Frequency Range | 80 Hz – 20 kHz |
| Power Capacity | 100 W (400 W peak), 100 hrs |
| Maximum SPL | 112 dB continuous average (118 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 86 dB (100 Hz - 10 kHz) |
| Enclosure | Removable locking connector with screw-down terminals. Max wire 12 AWG (2.5 mm) |
| Mounting | Ceiling |
| Dimensions | Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
