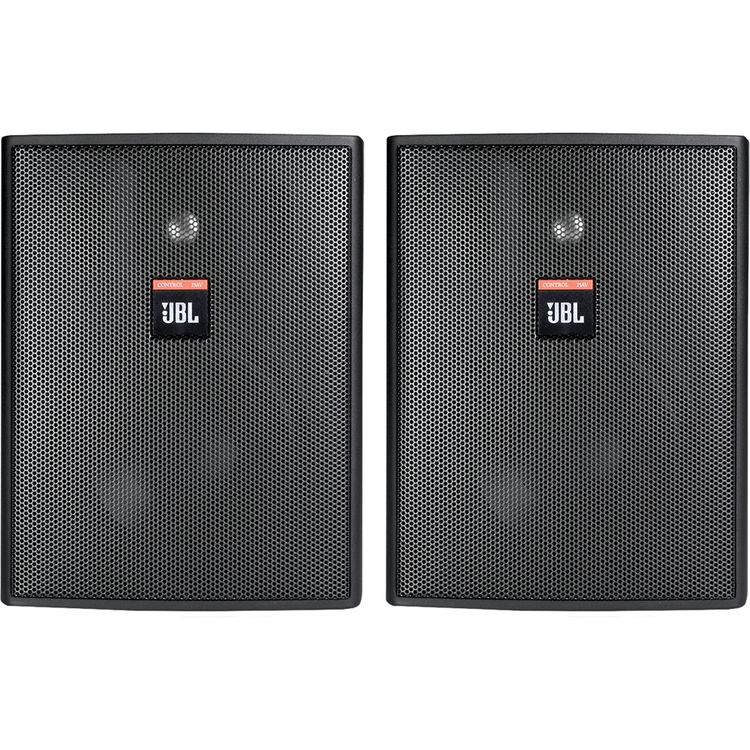

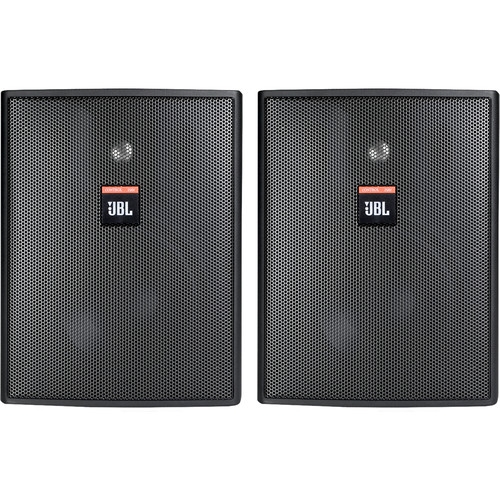

JBL Control 25AV 5.25" 2-Way 200W Shielded Loudspeaker - Black (Each)
Quick Overview
- Passive Design, Magnetic Shielding
- 5.25" Woofer, 0.75" Tweeter
- 200W Long-Term Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Low-Saturation Transformer
- 70 Hz to 23 kHz Frequency Range
PRODUCT OVERVIEW
Compact Indoor/Outdoor Background/Foreground Loudspeaker
Sold as a pair, the black JBL Control 25AV is a passive 5.25" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 60W transformer allows the Control 25AV to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 25AV is equipped with a durable 5.25" woofer and a 0.75" titanium-coated tweeter, yielding a frequency range of 70 Hz to 23 kHz, and a continuous program power capacity of 200W.
The 12 dB/octave crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting systems and input panel covers contribute to ease of installation.
Features
- Video shielded for use near video monitors.
- Extremely smooth frequency response.
- Stainless steel grill for harsh environments.
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
- SonicGuard™ overload protection.
- 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
- Includes InvisiBall® mounting hardware and sealed input panel cover.
- Screw-down input terminals.
- 100° x 100° high-frequency horn.
| Product Name | JBL Control 25AV 5.25" 2-Way 200W Shielded Loudspeaker - Black (Each) |
|---|---|
| Weight | 4.000000 |
| Frequency Response | 70 Hz - 23 kHz |
| Frequency Range | 70 Hz - 23 kHz (-10 dB) |
| Power Capacity | 200 W Continuous Program Power; 100 W Continuous Pink Noise |
| Maximum SPL | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 87 dB SPL, 1 W @ 1 m (3.3 ft) |
| Enclosure | High Impact polystyrene |
| Dimensions | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
