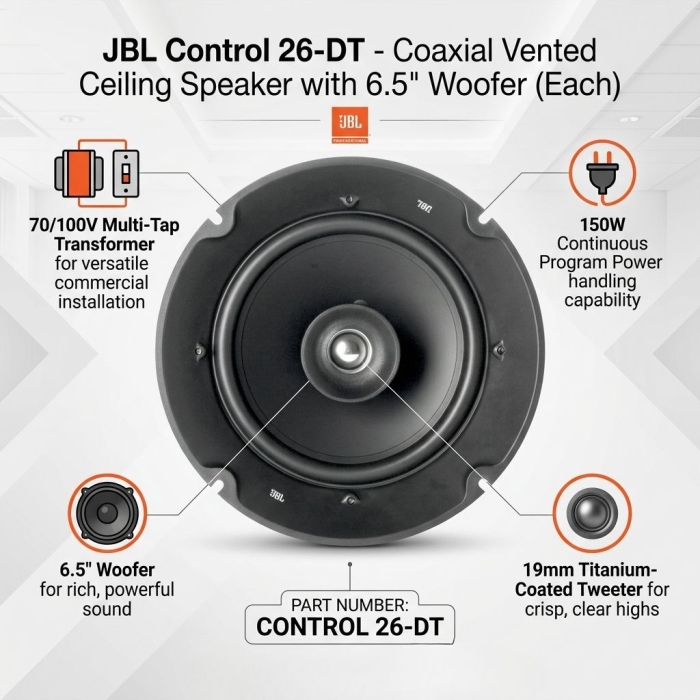

JBL Control 26-DT - Coaxial Vented Ceiling Speaker with 6.5" Woofer (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- Fits Standard Backcans for 8" Speakers
- 70/100V Multi-Tap Transformer
- 6.5" Woofer
- 19mm Titanium-Coated Tweeter
- 150W Continuous Program Power
- 95 Hz to 18 kHz Frequency Response
PRODUCT OVERVIEW

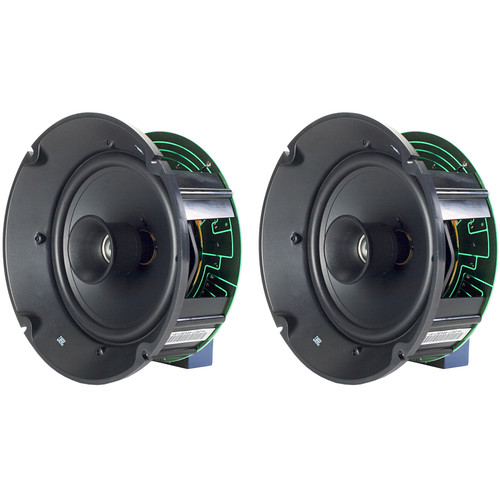

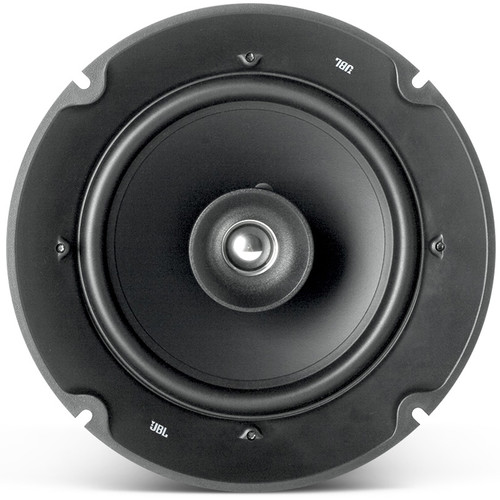

6.5" Ceiling Loudspeaker Transducer Assembly
The JBL Control 26DT is a 6.5" coaxial ceiling installation speaker assembly, offering a 90° coverage angle, a built-in 70/100V transformer with a 60-watt power handling capacity, and a 1" titanium-coated tweeter for even dispersion and directionality.
The Control 26DT assembly is designed as a substitute for standard 8" configurations and provides even, wider-dispersion coverage, with particular HF clarity via the diffraction-loaded tweeter, for venues with medium-high ceilings.
|
|
|
Features
- Use instead of a standard 8" driver. Fits standard back cans for 8" speakers.
- Comes complete with transducer, network, and transformer.
- Advanced crossover network provides a natural sound and even coverage throughout the listening area.
- 60 W transformer for 70 V or 100 V distributed speaker lines.
- Coaxial woofer with long-life butyl rubber surround and titanium-coated tweeter.
| Product Name | JBL Control 26-DT - Coaxial Vented Ceiling Speaker with 6.5" Woofer (Each) |
|---|---|
| Weight | 4.200000 |
| Frequency Response | 95 Hz – 18 kHz |
| Frequency Range | 70 Hz – 20 kHz |
| Power Capacity | 60 Watts (transformer) |
| Maximum SPL | 106 dB @ 3.3 ft / 1 m |
| Impedance | 80 Ohms min. @ 247 Hz (60 Watts) |
| Sensitivity (SPL / 1 W @ 1 m) | 89 dB (100 Hz - 10 kHz) |
| Mounting | 4 screw holes at 7.6" / 194 mm diameter on center |
| Dimensions | 120 mm x 200 mm (4.72 in x7.87 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
