JBL Control 26C Two Way Vented Ceiling Speaker with 6.5" Woofer (Each)
Quick Overview
- High-Output, 2-Way Coaxial Speaker
- 6.5" Woofer
- 19mm Titanium-Coated Tweeter
- 150W Continuous Program Power
- 75 Hz to 20 kHz Frequency Response
- SonicGuard Overload Protection
PRODUCT OVERVIEW

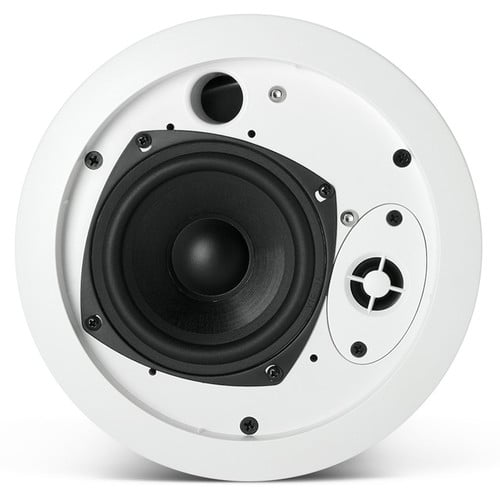

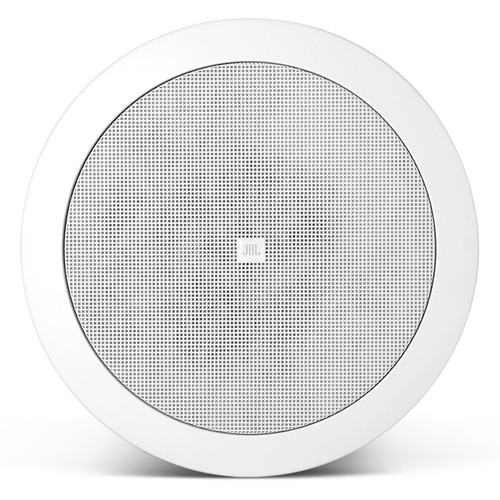

6.5" Ceiling Loudspeaker Transducer Assembly
The JBL Control 26C is a coaxial 2-way ceiling installation speaker with a 6.5" woofer and a .75" titanium-coated tweeter, featuring a high output, extended frequency reproduction, and a 110° coverage angle, designed in support of background or foreground music applications for hotels, casinos, bars, restaurants, and theme park pavilions.
The Control 26C is a 16 Ohm speaker, equipped with a loop-thru output connector for parallel expansion and voiding the need for the use of a distributed system, which, in conjunction with the speakers' wide coverage and high output, allows for fewer speakers to be installed to achieve a good sound and lowers installation costs.
|
|
|
Features
- Coaxially mounted 165 mm (6.5 in) woofer with a butyl rubber surround and 19 mm (.75 in) titanium-coated diffraction-loaded tweeter.
- High power, wide frequency response, and low distortion for high sound level capability.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Packaged with a grille, back can, and tile rails for fast installation and easy dealer stocking.
| Product Name | JBL Control 26C Two Way Vented Ceiling Speaker with 6.5" Woofer (Each) |
|---|---|
| Weight | 4.200000 |
| Frequency Response | 75 Hz to 20 kHz -10 dB |
| Frequency Range | 75 Hz – 20 kHz |
| Power Capacity | 150W Continuous Program Power 75W Continuous Pink Noise |
| Maximum SPL | 107 dB @ 1 m (3.3 ft) |
| Impedance | 16 ohms (Min Z: 16.5 Ω @ 290 Hz) |
| Sensitivity (SPL / 1 W @ 1 m) | 89 dB, 1m/1 W |
| Enclosure | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Mounting | Ceiling |
| Dimensions | 210 x 252 mm (8.3 x 9.9 in) 190 mm (7.5 in) front of ceiling tile to back of backcan |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
