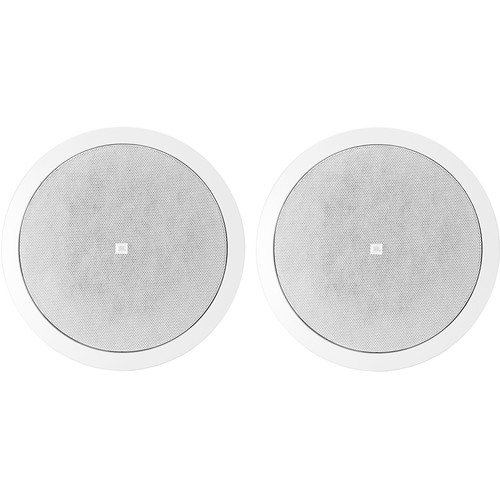

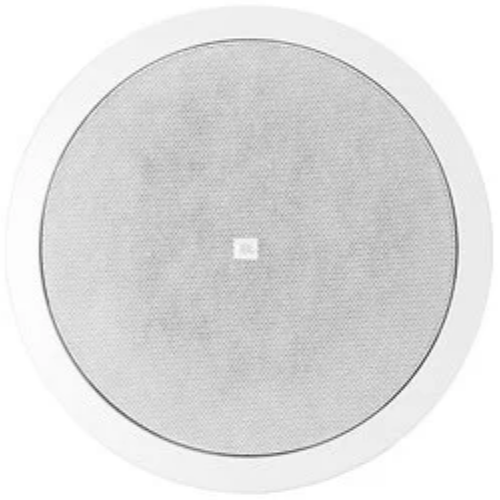

JBL Control 26CT-LS Ceiling Loudspeaker for Life-Safety Applications (Each)
Quick Overview
- High-Output, 2-Way Coaxial Speaker
- For Emergency Communication Systems
- 70/100V Multi-Tap Transformer
- 6.5" Woofer
- 19mm Titanium-Coated Tweeter
- 150W Continuous Program Power
PRODUCT OVERVIEW
Ceiling Loudspeaker Assembly for Life Safety Applications
The pair of JBL Control 26CT-LS Professional Ceiling Loudspeakers for Life/Safety Applications is a set of speaker assemblies designed specifically for use in fire alarm and/or emergency communication systems. The 26TCTS is built on the same platform as JBL's Control 26C and 26CT ceiling loudspeakers and is UL 1480 UUMW listed for safety systems.
The 150-watt continuous program power handling, 2-way coaxially mounted Control 26CT-LS loudspeaker is a compact ceiling speaker providing suitable performance in background or foreground music sound systems. The Control 26CT-LS is appropriate for use in a wide variety of applications from casinos and hotels to upscale restaurants, convention halls, and themed locations.

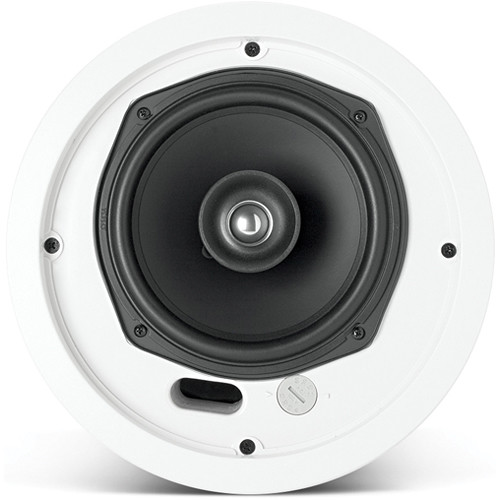

The 6.5" woofer features a polyurethane-coated cone and pure butyl-rubber surround for long life, even in high-humidity environments. An aluminum voice coil former provides extra cooling for greater long-term power handling. The coaxially mounted 0.75" titanium-coated tweeter provides crisp, clear highs. Diffraction loading of the tweeter provides wide, even coverage of the listening area.
|
|
|
Features
- UL1480 UUMW listed for use in fire alarm and/or emergency communication systems.
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium-coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Packaged with a grill, back can, and tile rails for fast installation and easy dealer stocking
| Product Name | JBL Control 26CT-LS Ceiling Loudspeaker for Life-Safety Applications (Each) |
|---|---|
| Weight | 4.200000 |
| Frequency Range | 80 Hz to 20 kHz (-10 dB) |
| Power Capacity | 150W Continuous Program Power 75W Continuous Pink Noise |
| Maximum SPL | 107 dB @ 1 m (3.3 ft) |
| Impedance | 16 Ohm |
| Sensitivity (SPL / 1 W @ 1 m) | 89 dB (100 Hz - 10 kHz) |
| Enclosure | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Mounting | In Ceiling speaker |
| Dimensions | 8.3 x 9.9" / 210.0 x 252.0 mm |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
