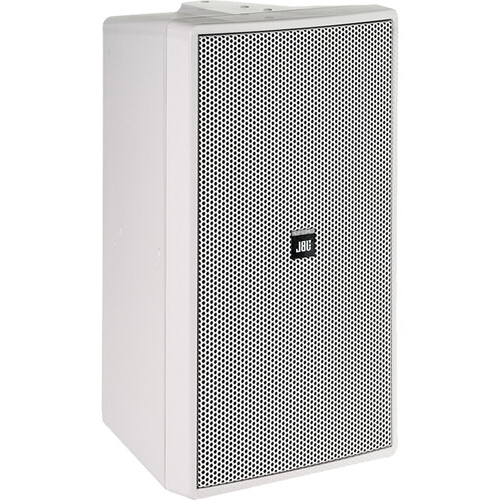

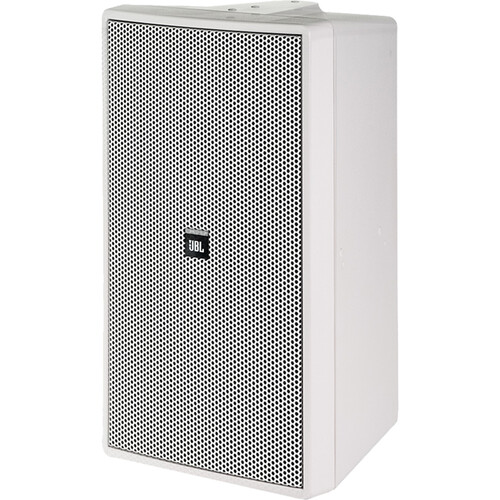

JBL Control 29AV-WH-1 8" 2-Way 300W Indoor/Outdoor Loudspeaker - White (Each)
Quick Overview
- 8" Woofer, 1" HF Driver, Rotatable Horn
- 300W Continuous Program Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Low-Saturation 110W Transformer
- 43 Hz to 15 kHz Frequency Response
PRODUCT OVERVIEW
JBL Control 29AV-WH-1 8" 2-Way Loudspeaker
The black JBL Control 29AV-WH-1 is a passive 8" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 110W transformer allows the Control 29AV-WH-1 to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 29AV-WH-1 is equipped with a durable 8" Kevlar-cone woofer and a 1" titanium-diaphragm compression driver, yielding a frequency response of 43 Hz to 15 kHz, and a continuous program power capacity of 300W. With a rotatable horn, the loudspeaker supports positioning for horizontal or vertical orientation.
|
|
|
The built-in crossover network ensures proper frequency distribution to the speaker components as well as a smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting system and input panel cover contribute to ease of installation. Thanks to judicious magnetic shielding, the Control 29AV-WH-1 may be placed as close as 9" to video monitors.
Features
- High-impact polystyrene enclosure with moderate magnetic shielding for positioning as close as 9" to video monitors
- Included InvisiBall mounting system is simple to install, aims easily and provides a high degree of theft deterrence
- 110° x 85° high-frequency coverage with a rotatable horn
- Low-saturation 110W transformer with low insertion loss enables use with 70V/100V constant-voltage systems and offers a bypass position for use in an 8-Ohm setup
- 300W continuous program power handling
- Durable 8" woofer with Kevlar cone and pure butyl surround
- 1" compression driver with pure titanium diaphragm and diamond surround
- 43 Hz to 15 kHz frequency response (± 3 dB), 37 Hz to 18 kHz frequency range (-10 dB)
- Crossover network with 18 dB/octave high-pass filter and 12 dB/octave low-pass filter
- Screw-down terminal strip—with a zinc-plated copper base and nickel-plated metal screws/washers—accepts up to 9mm outside and 4mm inside open lug (#6, #8 or #10), plus bare wire (up to 12 AWG)
- Aurally transparent SonicGuard circuitry features full-range power limiting to protect network and transducers, plus an internal fuse to protect during exceptional overload conditions
- Includes MTC-PC2 input panel cover to further protect speaker terminals
| Product Name | JBL Control 29AV-WH-1 8" 2-Way 300W Indoor/Outdoor Loudspeaker - White (Each) |
|---|---|
| Weight | 14.000000 |
| Frequency Response | 43 Hz to 15 kHz ±3 dB |
| Frequency Range | 37 Hz to 18 kHz -10 dB |
| Power Capacity | 200W ContinuousFor 100 Hours: 300 W Program 150 W RMS |
| Maximum SPL | 118 dB (Peak) 112 dB (Continuous) |
| Impedance | 8 Ohms (Nominal) 6.4 Ohms (Minimum) |
| Sensitivity (SPL / 1 W @ 1 m) | 90 dB (2.83V / 1m) |
| Mounting | Magnetic Mount |
| Dimensions | 20.5 x 12 x 10.9" / 52 x 30.6 x 27.7 cm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
