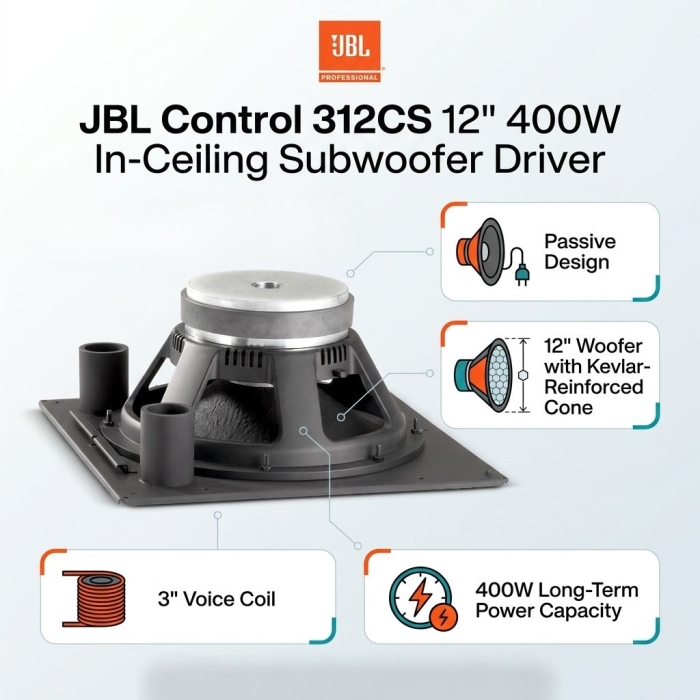

JBL Control 312CS 12" 400W In-Ceiling Subwoofer Driver (Each)
Quick Overview
- Passive Design
- 12" Woofer with Kevlar-Reinforced Cone
- 3" Voice Coil
- 400W Long-Term Power Capacity
- For 8-Ohm Power Amplifiers
- 34 Hz to 3.5 kHz Frequency Response
PRODUCT OVERVIEW
High-Output 12 in. In-Ceiling Subwoofer Loudspeaker
The JBL Control 312CS is a passive 12" in-ceiling subwoofer driver designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues such as boardrooms, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this subwoofer is capable of a 400W long-term power capacity. The Control 312CS features a durable 12" woofer with a Kevlar-reinforced cone and a 3" voice coil, and boasts a frequency response of 34 Hz to 3.5 kHz.
A removable locking connector offers screw-down terminals for input and loop-thru output connections. Installation is simplified via the built-in EZRail, which holds the pre-attached baffle in place until it is affixed to a backcan (available separately). The Control 312CS is intended for use with systems utilizing active external crossovers and separate subwoofer amplification.
Features
- Kevlar-reinforced 300 mm (12 inches) subwoofer driver woofer with 75 mm (3 inches) voice-coil.
- High power handling of 400 Watts with high sensitivity provides high SPL capability.
- The clean, contemporary grille and optional backbox available.
| Product Name | JBL Control 312CS 12" 400W In-Ceiling Subwoofer Driver (Each) |
|---|---|
| Weight | 7.700000 |
| Frequency Response | 30 Hz – 4.5 kHz |
| Frequency Range | 34 Hz – 3.5 kHz |
| Power Capacity | For 2 Hours: 400 W (1000 W Peak) For 100 Hours: 250 W (600 W Peak) |
| Maximum SPL | 121 dB cont ave (124 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 99 dB in ceiling near corner, 93 dB in center of ceiling |
| Mounting | 4 screw holes at 7.6" / 194 mm diameter on center |
| Dimensions | 366 x 366 mm (14.4 x 14.4 in) square baffle x 160 mm (6.3 in) depth from the back of the baffle. |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
