JBL Control 322C 12" 2-Way 400W Coaxial 8-Ohm Ceiling Speaker (Each)

PRODUCT OVERVIEW

High-output 12 in. Coaxial Ceiling Loudspeaker

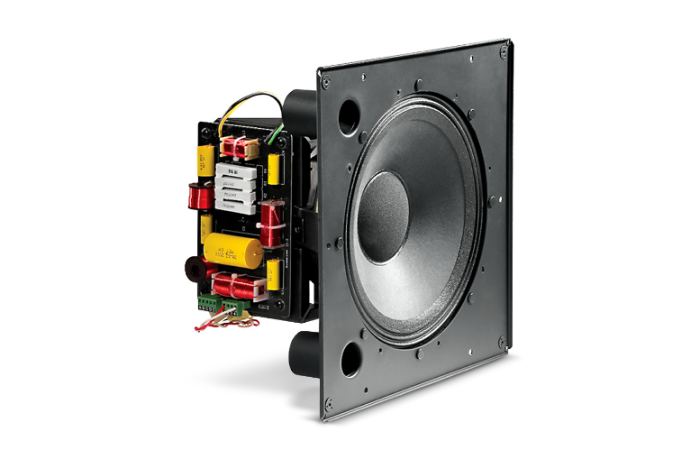

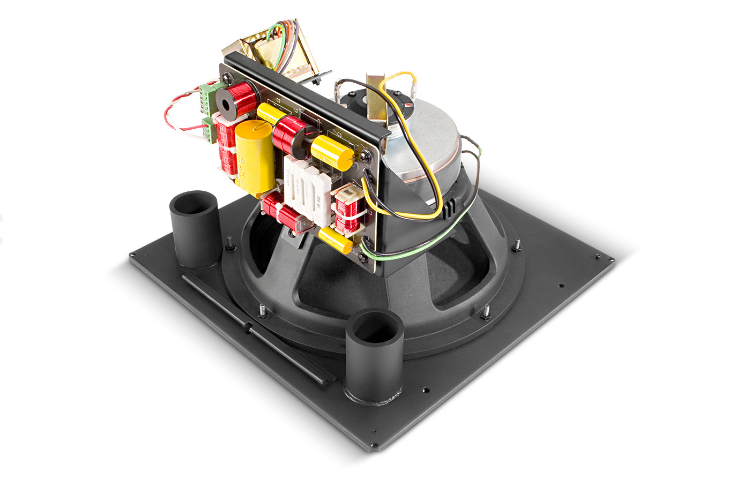

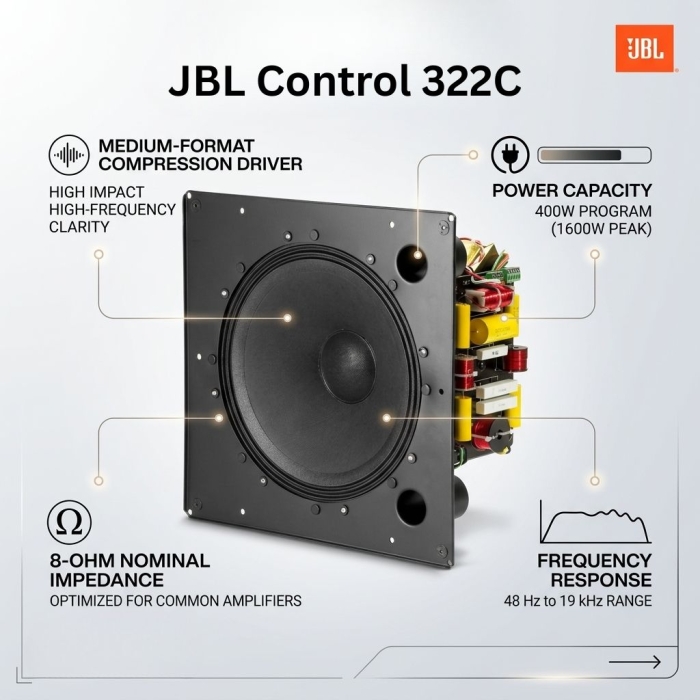

The JBL Control 322C is a passive 12" coaxial ceiling speaker designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 400W (1600W peak). The Control 322C is equipped with a durable 12" Kevlar-reinforced cone and a medium-format compression driver, yielding an extended frequency response of 48 Hz to 19 kHz.

The cone, which also serves as a waveguide, results in reliable 90° broadband coverage, while the built-in crossover network ensures proper frequency distribution to the speaker components. A removable locking connector with screw-down terminals ensures simple wiring for the input and loop output.

Features

• Consistent 90° broadband pattern control.
• Components
  • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inches) voice-coil cone.
  • Medium-format compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• Power handling of 400 Watts with high sensitivity provides high SPL capability.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• The clean, contemporary grille and optional backbox are available.
