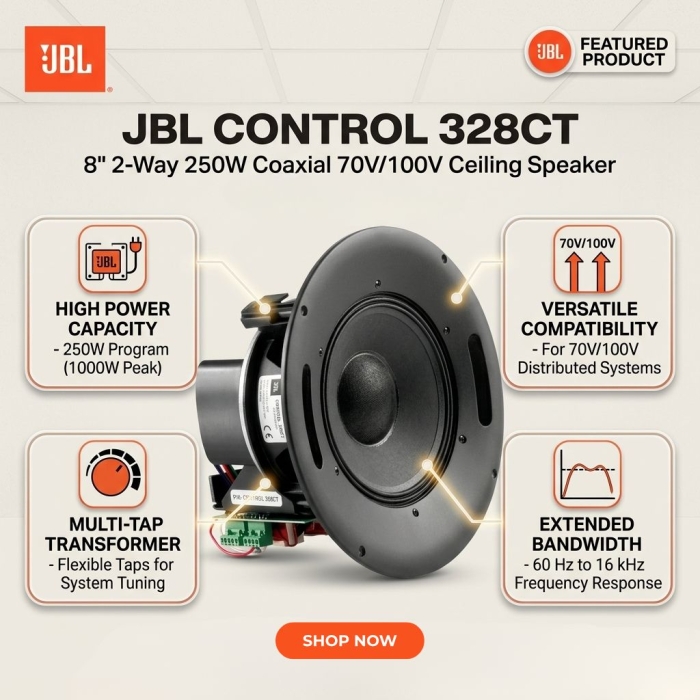

JBL Control 328CT 8" 2-Way 250W Coaxial 70V/100V Ceiling Speaker (Each)

PRODUCT OVERVIEW

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

The JBL Control 328CT is a passive 8" coaxial ceiling speaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. With a low-saturation transformer for compatibility with a 70V/100V power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 250W (1000W peak). The Control 328CT is equipped with a durable 8" Kevlar-reinforced cone and a titanium-diaphragm compression driver, yielding an extended frequency response of 60 Hz to 16 kHz.

The cone and pre-attached baffle serve as a high-frequency waveguide, which results in reliable 120° broadband coverage, while the built-in crossover network ensures proper frequency distribution to the speaker components. A removable locking connector with screw-down terminals ensures easy wiring at the desired power tap setting.

Features

• Consistent 120° broadband pattern control covers an extremely large area.
• A shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
• Components
• 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
• 25 mm (1" exit) compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• 250 Watt power handling with very high sensitivity provides high SPL capability.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• The clean, contemporary grille and optional backbox are available.
